REMOVAL
1.
Remove the hard top, if equipped,
(Refer to 23 - BODY/REMOVABLE TOP/TOP - REMOVAL).
2.
If equipped, release the soft top latches (1) and fold the soft top back.
3.

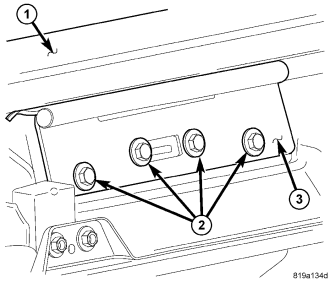

Remove the bolts (2) attaching the sport bar (3) to the windshield frame (1).
4.

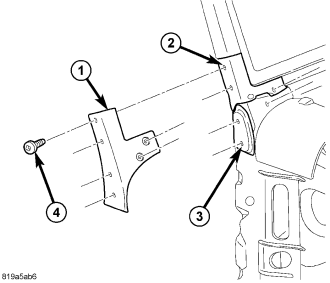

Remove the bolts (4) and remove the reinforcement brackets (1).
5.
Remove the cowl top panel,
(Refer to 23 - BODY/EXTERIOR/PANEL - COWL TOP - REMOVAL).
6.
Remove the hinge bolts (2) and remove the windshield frame (1).
