INSTALLATION

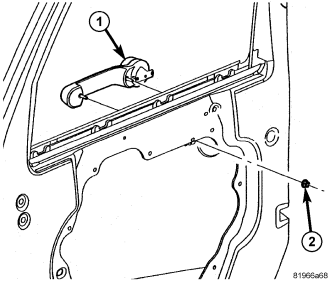

1. Install the handle (1) and install the front nut (2).
2. Tighten the nut to 4.5 Nm (40 in. lbs.).

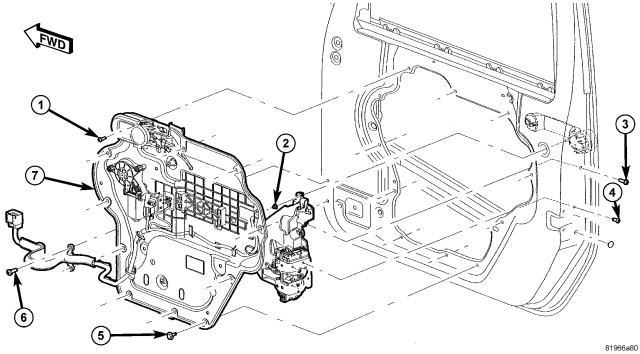

3. Install the carrier plate,
(Refer to 23 - BODY/DOOR - FULL FRONT/CARRIER PLATE - INSTALLATION).
