REMOVAL

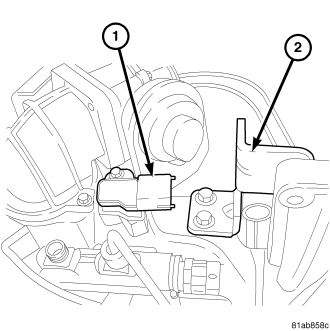

The combination, dual function Intake Manifold Air Temperature Sensor/MAP (IAT/MAP) sensor (1) is installed into the top of the intake manifold near the fuel rail.
1.
Clean area around sensor.
2.
Disconnect electrical connector from IAT/MAP sensor.
3.
Remove mounting screw.
4.
Remove sensor from intake manifold by twisting.
5.
Check condition of sensor O-ring.
