INSTALLATION
1.
Install a new intake manifold to throttle body gasket (2), if replacement was necessary.
2.
Install four new four j-nuts (1), if replacement was necessary.
CAUTION:
DO NOT OVER TORQUE. Over tightening can cause damage to the throttle body, gaskets, bolts and/or the intake manifold.
3.
Install throttle body (1) to intake manifold (2).
4.
Install four bolts (4) and hand tighten.
5.
Connect throttle body (1) electrical connector (3).
CAUTION:

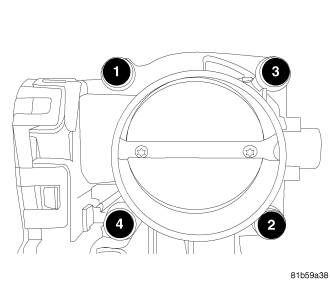

The throttle body must be torqued in a mandatory torque sequence. Tighten in a criss - cross pattern to specification.
6.
Tighten the bolts in a mandatory torque criss - cross pattern sequence to 7.5 Nm (65 in. lbs.).
7.
Install throttle body air intake hose and tighten clamps.
8.
Connect negative battery cable, tighten nut to 5 Nm (45 in. lbs.).
9.
Use a scan tool and select the ETC RELEARN function to relearn the APPS values.
