INSTALLATION

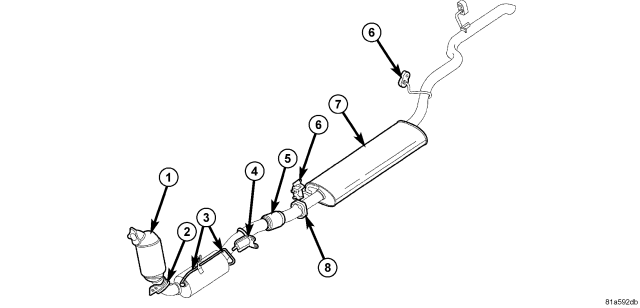

1. Position diesel particulate filter assembly in vehicle.
2. Install DPF to exhaust manifold bolts. Do not tighten at this time.
3. Install muffler/tailpipe to DPF flange nuts. Tighten nut to 32 Nm. (24 ft. lbs.).
4. Tighten DPF to exhaust manifold bolts to 32 Nm (24 ft. lbs.) Tighten muffler/tailpipe to DPF flange nuts to 34 Nm (24 ft. lbs.).
5. Lower vehicle.
