INSTALLATION

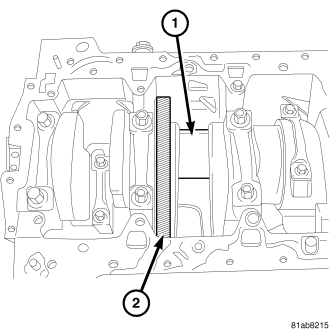

NOTE: Before installation of the balance shaft assembly, the crankshaft locking tool must be installed.

1. Remove the vibration damper and roll engine over by hand until the witness line on the front of the crankshaft hub lines up with the mark on the front cover. Once the crankshaft locking tool is installed the balance shaft assembly can be installed.

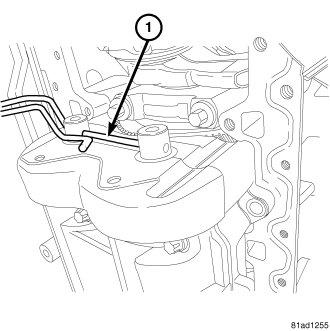

2. With balance shaft assembly on work bench. Insert a dowel into the holes in the balance shaft assembly. This will ensure proper balance shaft to crankshaft timing after assembly.

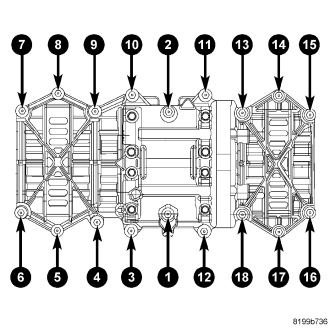

Torque the balance shaft carrier bolts in the torque sequence illustrated. Torque the bolts to 32 Nm (23 lbs. ft.)..
3. Install oil pump pickup tube with new seals (Refer to 9 - ENGINE/LUBRICATION/OIL PUMP - INSTALLATION) .
4. Install oil pan (Refer to 9 - ENGINE/LUBRICATION/OIL PAN - INSTALLATION) .
5. Refill engine oil to proper level.
6. Connect negative battery cable.
