INSTALLATION
1.
Place a dowel rod through the holes in the balance shaft axles to keep the balance shafts in the correct position for reassembly.
2.
Install the balance shaft housing.
3.

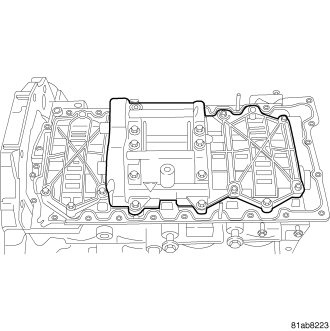

Use torque sequence in the graphic to torque the balance shaft bolts to 33 Nm (24 lbs. ft.).
4.
Install the upper oil pan gasket.
5.
Install the oil pickup tube.
6.
Install the upper oil pan.
7.
Use the illustrated torque sequence and torque the M6 bolts to 15 Nm (132 lbs. in.).
8.
Torque the M8 bolts to 33 Nm (23 lbs. ft.)
9.
Turn all of the upper oil pan bolts an additional 90 degrees .
10.
Install bolts 1 and 2 into the lower oil pan and torque to 15 Nm (133 lbs. in.)..
11.
Install the remaining bolts in the sequence illustrated.
12.
Torque the oil pan bolts in sequence to 15 Nm (133 lbs. in.).
13.
Loosen each bolt 90 degrees and use the illustrated sequence to torque the bolts to 15 Nm (133 lbs. in.).
14.
Fill the engine oil.
15.
Remove the TDC locking tool.
16.
Reconnect the battery.
