CAUTION: The cylinder head surface and straight edge must be absolutely clean before the flatness measurement is taken. DO NOT check flatness across the combustion chamber area or on the marks left by the gasket stopper.

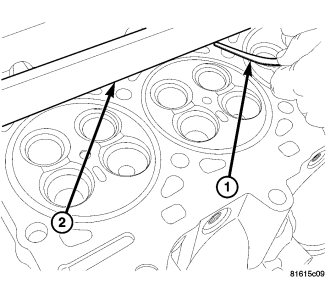

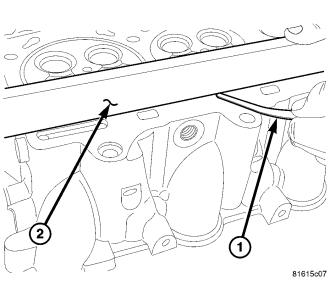

Use a cleaned straight edge (2) and feeler (1) gauge to check the flatness. Lie the straight edge (2) parallel across the cooling ports. Measure before each combustion chamber toward the outer edge of the cylinder head, above and below each combustion chamber, between each combustion chamber, top and bottom, on the cylinder head and block mating surfaces. The maximum allowed warpage is 0.075mm (0.003 in.).

The minimum cylinder head thickness is 89.95mm (3.541 in.).
