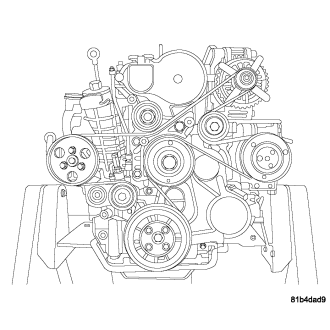

2.8L COMMON RAIL DIESEL ENGINE



The 2.8L (2776cc) four-cylinder “common rail” direct injection engine is an in-line overhead valve design. The engine utilize a cast iron cylinder block. The engine has a one piece aluminum cylinder head with four valves per cylinder and dual overhead cam shafts. The 2.8L is turbocharged, intercooled and also equipped with a EGR cooler.

The identification stamp for the 2.8L is located on the left side of the engine block, above the starter. The engine code label is located on the front timing cover and is the same as the engine I.D. and serial number. There is also a fuel system label on the front timing cover used for fuel system identification during ECM programming.


DESCRIPTION
SPECIFICATION
Displacement 2.8L
2.8L (2776cc)
Bore
94.00 mm
Stroke
100.00 mm
Compression Ratio
17.5:1
Vacuum at Idle
700 mm/Hg (27.5 In/Hg)
Belt Tension
Automatic Belt Tensioner
Thermostat Opening
80 degrees C +/- 2 degrees C
Generator Rating
Denso 12V-95A
Cooling System Capacity
13.8 Liters W/O Auxiliary Heater
16.6 Liters With Auxiliary Heater
Engine Oil Capacity
6.0L (6.3 Qt.) W/Filter Change
Timing System
Belt Driven DOHC Overhead Camshafts
Air Intake
Dry Filter With Turbocharger and Charge Air Cooler
Fuel Supply
Gear - Style Pump Incorporated In The High Pressure Pump
Fuel System
Direct Fuel Injection Common Rail System
Combustion Cycle
4 Stroke
Cylinder Compression Difference Between Cylinders
5 Bar (72.5 psi.)
Cooling System
Water Cooling
Injection Pump
CP3 2nd. Generation Common Rail System
Lubrication
Pressure Lubricated By Rotary Pump
Minimum Oil Pressure (Warm)
0.7 Bar (10 psi.) at Idle
2 Bar (29 psi) at 3800 rpm
Engine Rotation
Clockwise Viewed From Front Cover
