INSTALLATION
1.
Install rings with manufacturers I.D. mark (if present) facing up, to the top of the piston .
CAUTION:

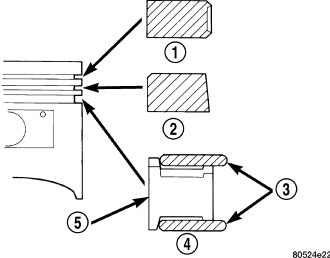

Install piston rings in the following order:
-
Oil ring expander.
-
Upper oil ring side rail.
-
Lower oil ring side rail.
-
No. 2 Intermediate piston ring.
-
No. 1 Upper piston ring.
2.

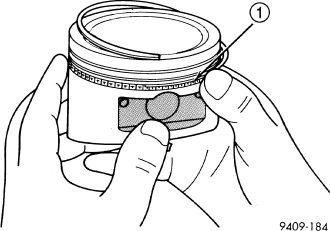

Install the side rail by placing one end between the piston ring groove and the expander. Hold end firmly and press down the portion to be installed until side rail is in position. Do not

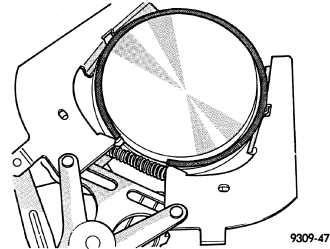

use a piston ring expander .
3.
Install upper side rail first and then the lower side rail.
4.
Install No. 2 piston ring and then No. 1 piston ring.
5.

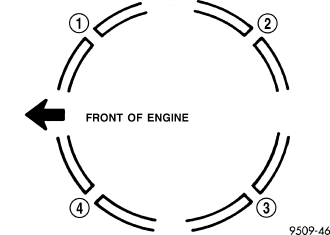

Position piston ring end gaps as shown.
6.
Position oil ring expander gap at least 45 degrees from the side rail gaps but not on the piston pin center or on the thrust direction. Staggering ring gap is important for oil control.
