1.
Lubricate camshaft lobes and camshaft bearing journals with engine oil .
2.
Install a long bolt into the camshaft to assist in the installation of the camshaft .
3.

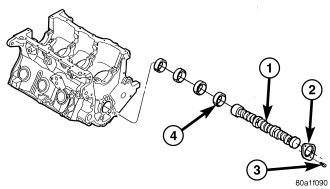

Carefully install the camshaft in engine block.
4.
Install camshaft thrust plate and bolts . Tighten to 12 Nm (105 in. lbs.) torque.
5.
Measure camshaft end play.
(Refer to 9 - ENGINE - SPECIFICATIONS) If not within specifications, replace thrust plate.
6.
Install the timing chain and sprockets.
(Refer to 9 - ENGINE/VALVE TIMING/TIMING BELT/CHAIN AND SPROCKETS - INSTALLATION)
NOTE:

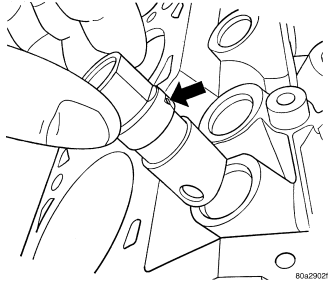

When camshaft is replaced, all of the hydraulic lifters must be replaced.
