INSTALLATION

1. Clean cylinder head and cylinder head cover mating surfaces. Inspect cylinder head cover surface for flatness. Replace gasket as necessary.
2. Assemble gasket to cylinder cover by inserting the fasteners through each bolt hole on cover and gasket.
3. Install the cylinder head cover and bolts.
4. Tighten cylinder head cover bolts to 12 Nm (105 in. lbs.).

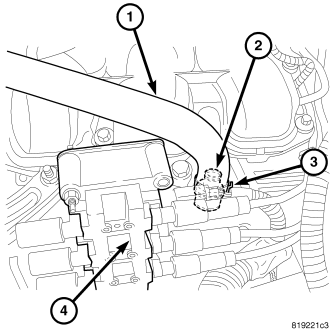

5. Connect PCV hose (1).

6. Install the ignition coil pack (1) and plug wires.

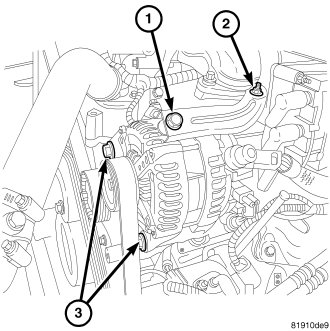

7. Install the generator support bracket (1,2).
8. Connect spark plug wires to spark plugs.
