U0168-LOST COMMUNICATION WITH VEHICLE SECURITY CONTROL MODULE (SKREEM-WCM)

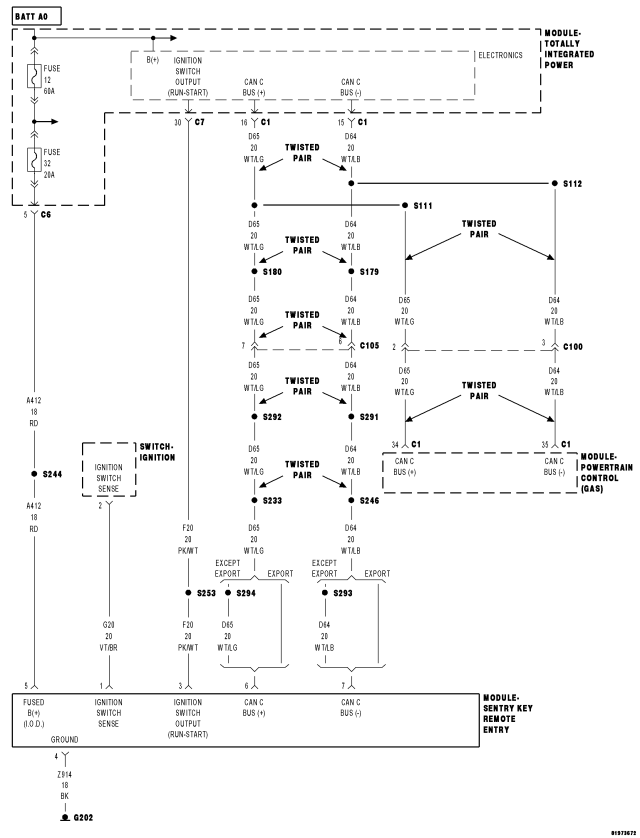

For a complete wiring diagramRefer to Section 8W.

When Monitored:
Ignition run time is greater than 1 second. Battery voltage between 9 and 16 volts. Engine run time greater than 3 seconds.
Set Condition:
The PCM doesn't receive a SKREEM message over the CAN C circuit for 7 consecutive seconds. The circuit is continuously monitored.

NO POWER TO VEHICLE SECURITY CONTROL MODULE (SKREEM) — MODULE UNPLUGGED OR OPEN FUSE

Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING for diagnostic procedures and for further possible causes.

Diagnostic Test

1. ACTIVE DTC

NOTE: For vehicle communication problems, use the scan tool to refer to the Network Review Screen. The screen depicts a high level view of the vehicle network. Fault and problem areas appear in red. Selecting any of the network components allows access to the source of the problem.

NOTE: Check the IOD fuse before continuing. If the fuse is open, check the circuit for a short to ground.

Turn the ignition on.
With a scan tool, select View DTCs.

Is the DTC Active at this time?

Yes

Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING for diagnostic procedures and for further possible causes.

Refer to the INTERMITTENT CONDITION Diagnostic Procedure.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
