INSTALLATION

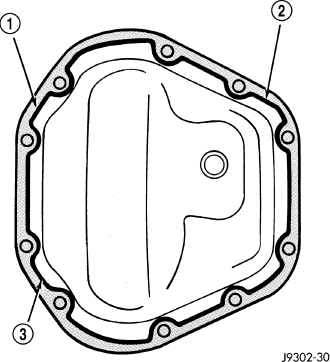

1. Apply a 6.35 mm (1/4 in.) bead of Mopar Silicone Rubber Sealant (2) or equivalent to the housing cover (1).

CAUTION: If housing cover is not installed within 3 to 5 minutes, the cover must be cleaned and new RTV applied. Failure to heed caution may result in damage.

2. Install cover (1), identification tag (3) and tighten cover bolts in a criss-cross pattern to 41 Nm (30 ft. lbs.).
3. Fill differential to specifications.
4. Install fill plug (2) and tighten to 34 Nm (25 ft. lbs.).
