REMOVAL




1. With transmission in neutral, position vehicle on hoist.
2. Remove brake caliper with adapter and rotor.

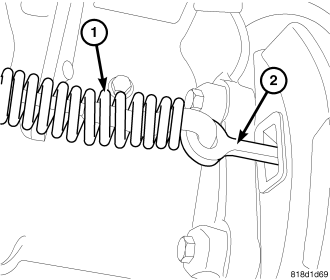

3. Remove park brake cable (1) from support plate (2).

NOTE: Park brake cables are self adjusting and must be locked out before removal.

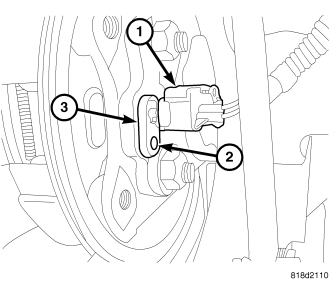

4. Remove brake sensor harness (1) and remove sensor (2) from support plate.


5. Remove axle retainer plate nuts.

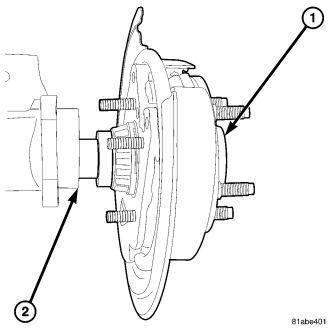

6. Pull axle shaft (1) with support plate, bearing and seal from axle tube (2).
