INSTALLATION

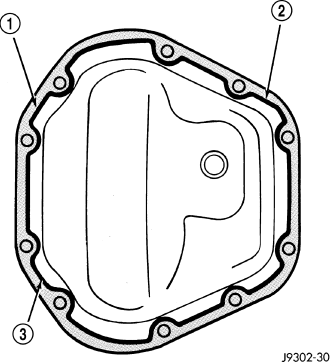

1. Apply a 6.35mm (1/4 in.) bead of Mopar Silicone Rubber Sealant (3) or equivalent to the housing cover .

CAUTION: If housing cover is not installed within 3 to 5 minutes, the cover must be cleaned and new RTV applied. Failure to heed caution may result in damage.

2. Install differential cover (2), and tighten cover bolts in a criss-cross pattern to 41 Nm (30 ft. lbs.).
3. Fill differential to specifications.
4. Install fill plug and tighten to 34 Nm (25 ft. lbs.).
