| Reaction Planetary Geartrain |
|

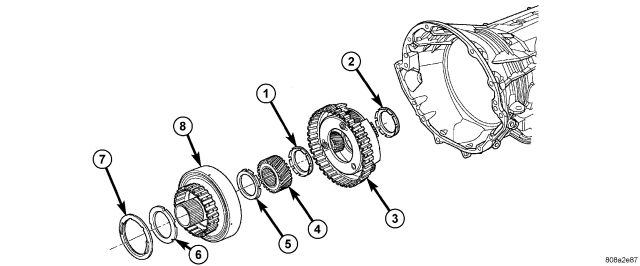

1 - THRUST BEARING NUMBER 8 |
5 - THRUST BEARING NUMBER 7 |
|
2 - THRUST BEARING NUMBER 9 |
6 - THRUST PLATE (SELECT) |
|
3 - REACTION PLANETARY CARRIER |
7 - THRUST BEARING NUMBER 6 |
|
4 - REACTION SUN GEAR |
8 - REACTION ANNULUS |
The planetary geartrain is located behind the 4C retainer/bulkhead, toward the rear of the transmission. The planetary geartrain consists of three primary assemblies:
|

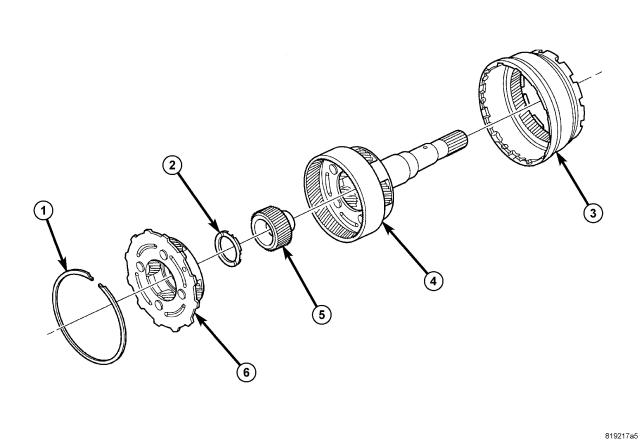

1. Snap Ring |
4. Input Planetary Carrier |
|
2. Thrust Bearing No. 10 |
5. input Sun Gear |
|
3. Input Annulus |
6. Reverse Carrier |
