DESCRIPTION |
FIGURE |
|
TWO DOOR |
TWO DOOR - JK72
|
|
FOUR DOOR |
FOUR DOOR - JK74
|

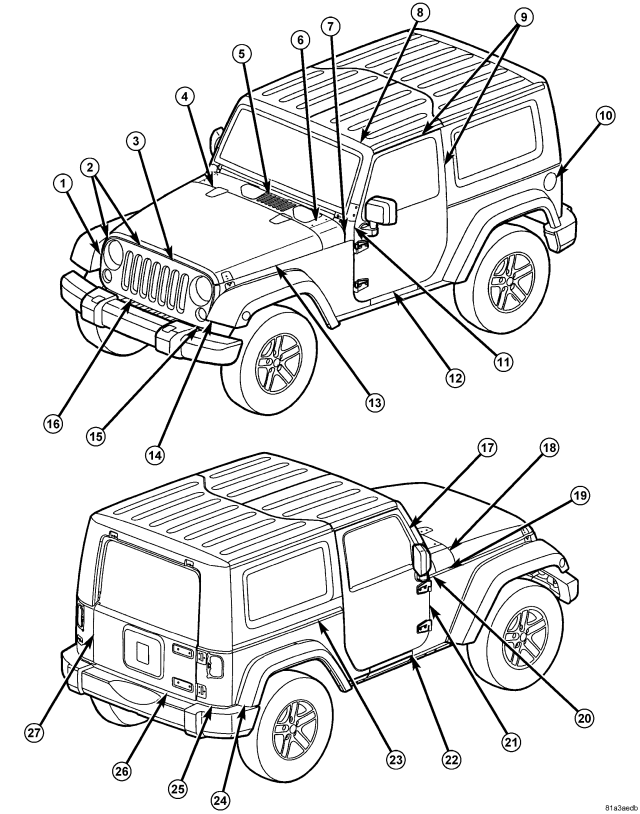

| TWO DOOR - JK72 |
NOTE: All dimensions are in millimeters.
|
DIMENSION |
DESCRIPTION |
GAP |
FLUSH |
|
1 |
Fender to Grille |
-- |
0.0 +/- 2.0 |
|
2 |
Hood/Fender to Grille |
7.0 +/- 2.0 Parallel within 1.5 Side to Side 2.0 |
-- |
|
3 |
Hood to Grille |
-- |
Hood O/F 1.0 +/- 2.0 Parallel within 1.5 |
|
4 |
Hood to Cowl Grille |
7.0 +/- 2.0 Parallel within 1.5 |
0.0 +/- 2.0 |
|
5 |
Cowl Grille to Windshield |
5.0 +/- 2.0 Parallel within 1.5 |
0.0 +/- 2.0 |
|
6 |
Cowl Grille to Cowl End Cap |
5.5 +/- 1.5 |
0.0 +/- 1.5 |
|
7 |
Cowl Panel Windshield Reinforcement |
To Windshield 4.0 +/- 1.5 Parallel within 1.5 To Cowl End Cap 3.0 +/- 2.0 |
-- |
|
8 |
Windshield to Hard/Soft Top |
5.0 +/- 2.0 Parallel within 2.0 |
O/F 1.0 +/-2.0 |
|
9 |
Hard/Soft Top to Front Door |
5.0 +/- 2.0 Parallel within 1.5 |
12.0 +/- 2.0 at Drip Rail 0.0 +/- 1.5 at Belt Line |
|
10 |
Fuel Filler Door to Body Side |
0.0 + 1.5/-0.0 |
-- |
|
11 |
Windshield Reinforcement to Door |
5.0 +/- 1.5 Parallel within 1.5 |
0.0 +/- 1.5 |
|
12 |
Front Door to Body Side |
5.0 +/- 1.5 Parallel within 1.5 |
0.0 +/- 1.5 Allow additional +/- 0.5 with Side Curtain |
|
13 |
Hood to Fender |
6.0 +/- 1.5 Parallel within 1.5 |
0.0 +/- 1.5 |
|
14 |
Fender/Wheel Flare to Fascia |
16.0 +/- 4.0 Parallel within 3.0 |
-- |
|
15 |
Grille to Bumper |
11.0 +/- 4.0 Parallel within 3.0 |
-- |
|
16 |
Grille to Valance Cover |
13.0 +/- 4.0 |
-- |
|
17 |
Windshield to Door |
5.0 +/- 1.5 Parallel within 1.5 |
0.0 +/- 1.5 Allow additional +/- 0.5 with Side Curtain |
|
18 |
Hood to Cowl Grille End Cap |
7.0 +/- 2.0 Parallel within 1.5 |
0.0 +/- 1.5 |
|
19 |
Cowl End Cap to Fender |
5.5 +/- 1.5 Parallel within 1.5 |
0.0 +/- 1.5 |
|
20 |
Windshield Reinforcement to Fender |
7.0 +/- 2.0 |
0.0 +/- 1.5 |
|
21 |
Fender to Door |
5.0 +/- 1.5 Parallel within 1.5 |
0.0 +/- 1.5 |
|
22 |
Fender to Body Side |
5.0 +/- 1.5 |
0.0 +/- 1.5 |
|
23 |
Hard/Soft Top to Body |
16.0 +/- 1.5 Parallel within 1.5 |
0.0 +/- 1.5 |
|
24 |
Rear Bumper to Wheel Flare |
19.0 +/- 5.0 |
0.0 +/- 4.0 |
|
25 |
Rear Bumper to Body Side |
13.0 +/- 3.0 |
-- |
|
26 |
Rear Bumper to Swing Gate |
34.5 +/- 3.0 Parallel within 3.0 |
-- |
|
27 |
Swing Gate to Body |
5.0 +/- 1.5 Parallel within 1.5 Side to Side 2.0 |
0.0 +/- 1.5 Parallel within 1.5 |
| FOUR DOOR - JK74 |
NOTE: All dimensions are in millimeters.
|
DIMENSION |
DESCRIPTION |
GAP |
FLUSH |
|
1 |
Fender to Grille |
-- |
0.0 +/- 2.0 |
|
2 |
Hood/Fender to Grille |
7.0 +/- 2.0 Parallel within 1.5 Side to Side 2.0 |
-- |
|
3 |
Hood to Grille |
-- |
Hood O/F 1.0 +/- 2.0 Parallel within 1.5 |
|
4 |
Hood to Cowl Grille |
7.0 +/- 2.0 Parallel within 1.5 |
0.0 +/- 2.0 |
|
5 |
Cowl Grille to Windshield |
5.0 +/- 2.0 Parallel within 1.5 |
0.0 +/- 2.0 |
|
6 |
Cowl Grille to Cowl End Cap |
5.5 +/- 1.5 |
0.0 +/- 1.5 |
|
7 |
Cowl Panel Windshield Reinforcement |
To Windshield 4.0 +/- 1.5 Parallel within 1.5 To Cowl End Cap 3.0 +/- 2.0 |
-- |
|
8 |
Windshield to Hard/Soft Top |
5.0 +/- 2.0 Parallel within 2.0 |
O/F 1.0 +/-2.0 |
|
9 |
Hard/Soft Top to Front Door |
5.0 +/- 2.0 Parallel within 1.5 |
12.0 +/- 2.0 |
|
10 |
Hard/Soft Top to Rear Door |
5.0 +/- 2.0 Parallel within 1.5 |
12.0 +/- 2.0 at Drip Rail 0.0 +/- 1.5 at Belt Line |
|
11 |
Fuel Filler Door to Body Side |
0.0 + 1.5/-0.0 |
-- |
|
12 |
Rear Door to Body Side |
5.0 +/- 1.5 Parallel within 1.5 |
0.0
+/- 1.5 Allow additional +/- 0.5 with Side Curtain |
|
13 |
Windshield Reinforcement to Door |
5.0 +/- 1.5 Parallel within 1.5 |
0.0 +/- 1.5 |
|
14 |
Front Door to Body Side |
5.0 +/- 1.5 Parallel within 1.5 |
0.0 +/- 1.5 Allow additional +/- 0.5 with Side Curtain |
|
15 |
Hood to Fender |
6.0 +/- 1.5 Parallel within 1.5 |
0.0 +/- 1.5 |
|
16 |
Fender/Wheel Flare to Fascia |
16.0 +/- 4.0 Parallel within 3.0 |
-- |
|
17 |
Grille to Bumper |
11.0 +/- 4.0 Parallel within 3.0 |
-- |
|
18 |
Grille to Valance Cover |
13.0 +/- 4.0 |
-- |
|
19 |
Windshield to Door |
5.0 +/- 1.5 Parallel within 1.5 |
0.0 +/- 1.5 Allow additional +/- 0.5 with Side Curtain |
|
20 |
Hood to Cowl Grille End Cap |
7.0 +/- 2.0 Parallel within 1.5 |
0.0 +/- 1.5 |
|
21 |
Cowl End Cap to Fender |
5.5 +/- 1.5 Parallel within 1.5 |
0.0 +/- 1.5 |
|
22 |
Windshield Reinforcement to Fender |
7.0 +/- 2.0 |
0.0 +/- 1.5 |
|
23 |
Fender to Door |
5.0 +/- 1.5 Parallel within 1.5 |
0.0 +/- 1.5 |
|
24 |
Fender to Body Side |
5.0 +/- 1.5 |
0.0 +/- 1.5 |
|
25 |
Hard/Soft Top to Body |
16.0 +/- 1.5 Parallel within 1.5 |
0.0 +/- 1.5 |
|
26 |
Rear Bumper to Wheel Flare |
19.0 +/- 5.0 |
0.0 +/- 4.0 |
|
27 |
Rear Bumper to Body Side |
13.0 +/- 3.0 |
-- |
|
28 |
Rear Bumper to Swing Gate |
34.5 +/- 3.0 Parallel within 3.0 |
-- |
|
29 |
Swing Gate to Body |
5.0 +/- 1.5 Parallel within 1.5 Side to Side 2.0 |
0.0 +/- 1.5 Parallel within 1.5 |
