REMOVAL
1.
Before proceeding with the following repair procedure, review all warnings and cautions.
(Refer to 23 - BODY/SEATS - WARNING).
2.
For appropriate seat configuration illustrations,
(Refer to 23 - BODY/SEATS/SEAT - REAR - DESCRIPTION).
3.
Remove the rear seat,
(Refer to 23 - BODY/SEATS/SEAT - REAR - REMOVAL).
4.
Remove the headrest,
(Refer to 23 - BODY/SEATS/HEADREST - REMOVAL).
Two Door
1.
Remove the back frame to cushion bolts and separate the seat back assembly.
2.
Separate the J-straps and unzip the cover.

3.

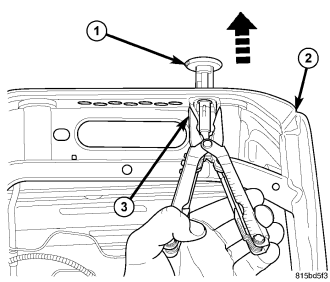

Squeeze the locking tab (3) and remove the headrest sleeves (1).
4.
Remove the seat cushion from the seat back frame.
5.
Remove the hog rings and separate the cover from the cushion.
Four Door
1.
Separate the seat halves.
2.
Remove the seat handle bezel.
3.
Remove the screws and remove the release handle.
4.
Remove the seat cushion pivot bolts and remove the seat cushion from the seat back assembly.
5.
Remove the inner and outer latch covers.
6.
Remove the seat belt bezel.
7.
Separate the J-straps and unzip the cover.
8.
Remove the seat cushion from the seat back frame.
9.
Remove the hog rings and separate the cover from the cushion.
