ADJUSTMENT
1.

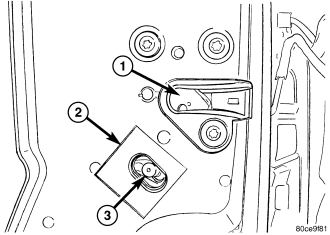

Locate access hole and remove the mylar tape (2) covering it.
2.
Insert a 5/32” hex-wrench through hole and into adjustment screw (3). Loosen screw.
3.
Operate outside handle several times to release any restriction because of mis-alignment.
4.
Tighten adjustment screw to 3 Nm (30 in. lbs.).
5.
Test handle for proper operation.
