INSTALLATION
1.

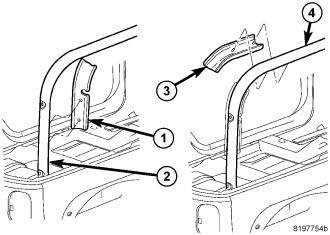

Position the trim (1) and (3) and seat fully.
2.
Position the side cover over the side bars and zip closed.
On two door vehicles;
3.
Position the trim (1) and (3) onto the sport bars (4) and seat fully.
On two door vehicles;
4.
Position the covers (1) onto the sport bar and zip closed.
On two door vehicles;
5.

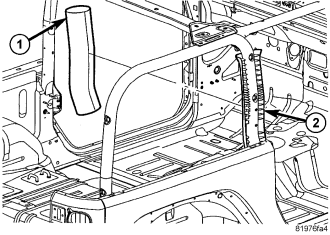

Position the trim (2) onto the sport bar.
6.

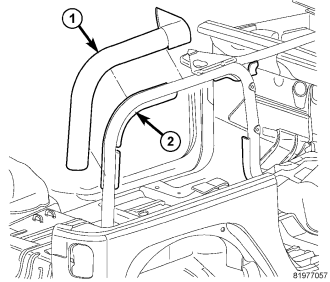

Position the cover (1) onto the trim (2) and zip closed.
On four door vehicles;
7.

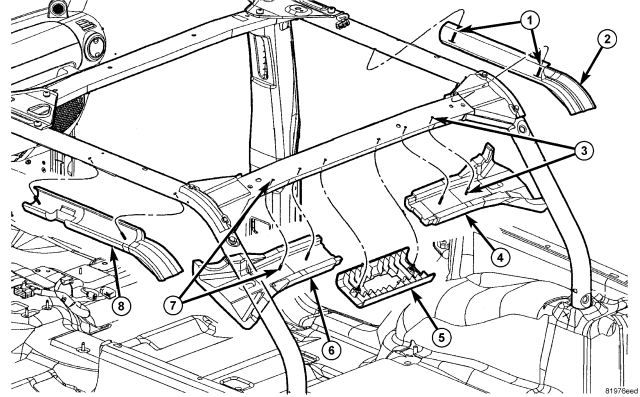

Position the side trim (2) and (8) onto the sport bars and seat the push pin fasteners (1) fully.
8.
Position the cross bar trim (4) and (6) onto the cross bar and seat the push pin fasteners (3) and (7) fully.
9.
Position the interior lamp bezel (5) onto the cross bar and seat fully.
On four door vehicles;
10.

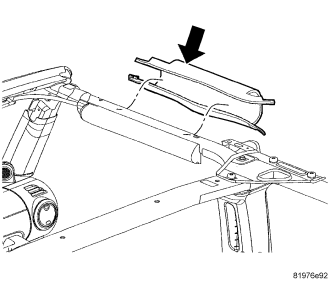

Install the cover (2) and zip closed.
On four door vehicles;
11.
If equipped, connect the electrical connector (4) and seat the rear dome light (6) onto the cross bar fully
On four door vehicles;
12.
Install the seat belt retractor (4) and turning loop (2),
(Refer to 8 - ELECTRICAL/RESTRAINTS/SEAT BELT & RETRACTOR - INSTALLATION)
13.
Install the sport bar speaker pod,
(Refer to 23 - BODY/INTERIOR/SPORT BAR - SPEAKER POD - INSTALLATION).
14.
Install the hard tops, if equipped,
(Refer to 23 - BODY/REMOVABLE TOP/TOP - INSTALLATION).
