INSTALLATION
Front Carpet
1.

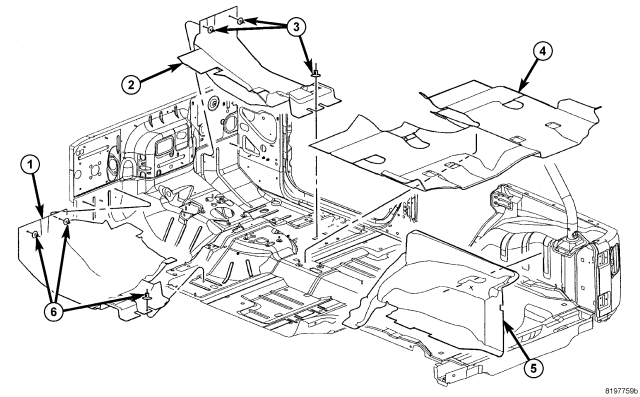

Install the carpet (1) or (2) and install the stud caps (6) or (3).
2.
Install the lower B-pillar trim,
(Refer to 23 - BODY/INTERIOR/B-PILLAR TRIM - INSTALLATION).
3.
Install the cowl trim panel,
(Refer to 23 - BODY/INTERIOR/COWL TRIM COVER - INSTALLATION).
4.
Install the floor console,
(Refer to 23 - BODY/INTERIOR/CENTER CONSOLE - INSTALLATION).
5.
Install the front seats,
(Refer to 23 - BODY/SEATS/SEAT - FRONT - INSTALLATION).
Rear Carpet
1.
Install the rear carpet (4).
2.
Install the wheelhouse carpets (5).
3.
Install the load floor carpet,
(Refer to 23 - BODY/INTERIOR/LOAD FLOOR CARPET - INSTALLATION).
4.
Install the rear speaker,
(Refer to 8 - ELECTRICAL/AUDIO/SPEAKER - INSTALLATION).
5.
Install the rear seat,
(Refer to 23 - BODY/SEATS/SEAT - REAR - INSTALLATION).
