INSTALLATION
1.

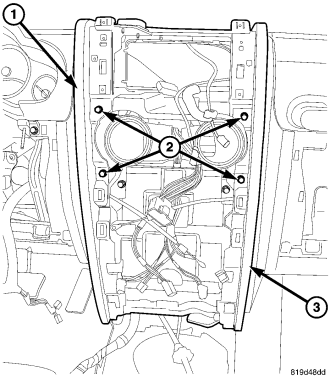

Install the center I/P trim panels (1 and 3) and install the screws (2).
2.
Install the radio,
(Refer to 8 - ELECTRICAL/AUDIO/RADIO - INSTALLATION).
3.
Connect the HVAC control cables (1 and 9) and connect the electrical connectors (3 and 4).
4.
Position the center bezel (1) onto the I/P and seat the clips fully.
5.
Install the lower screws (2).
6.

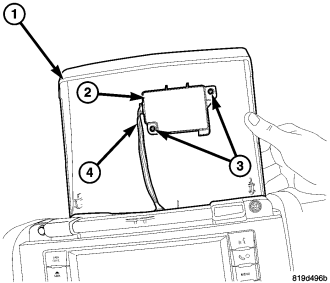

Connect the electrical connector (4) and position the upper center cover onto the top of the I/P.
7.

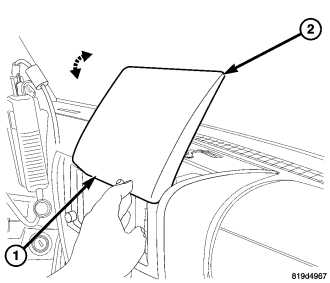

Position the front of the cover (1) onto the center support and rotate the trim (2) back and seat the clips fully.
8.

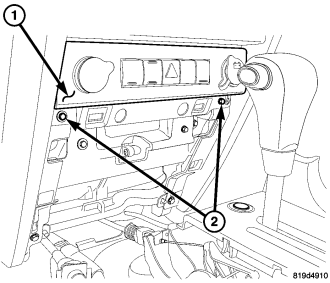

Position the lower tabs (1) into the slots and rotate the trim (3) up and seat the clips (2) fully.
