REMOVAL

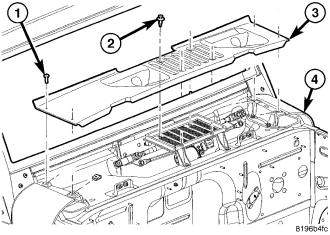

1. Remove the cowl top panel (3),
(Refer to 23 - BODY/EXTERIOR/PANEL - COWL TOP - REMOVAL).

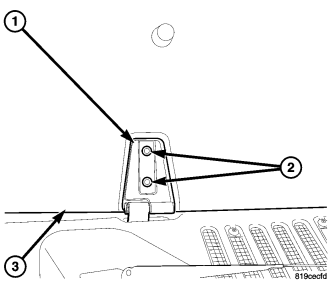

NOTE: It is not necessary to remove the hood to replace the hood hinges. Hood hinges can be replaced one at a time.


2. Support the hood with a suitable device.
3. Remove the hinge to body bolts (2).



4. Using a grease pencil or equivalent, mark location of hood hinges (1) on hood (3) to aid installation.
5. Remove the hinge to hood bolts (2) and remove the hinge (1).
