INSTALLATION

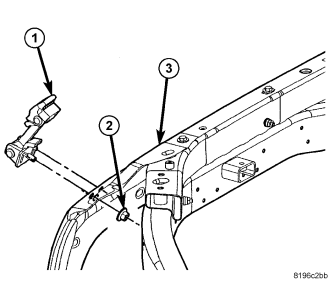

1. Install the catch bracket (2) and install the nuts (1).
2. Tighten the nuts to 7 Nm (5 ft. lbs.).

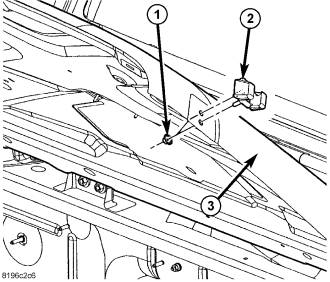

3. Install the hood catch (1) and install the nuts (2).
4. Tighten the nuts to 15 Nm (11 ft. lbs.).
