INSTALLATION

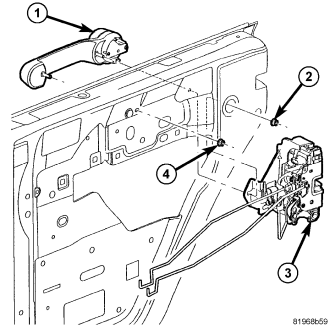

1. Install the handle (1) and install the nuts (4) and (2).
2. Tighten the nuts to, 4.5 Nm (40 in. lbs.).

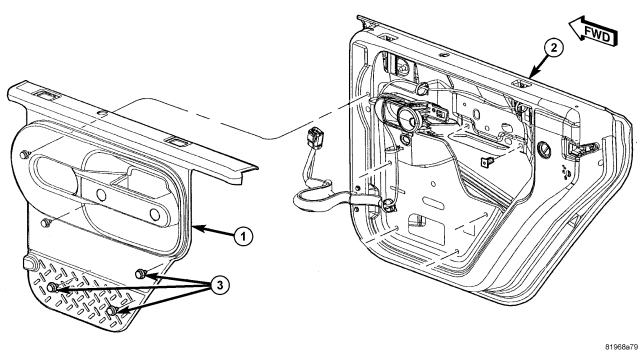

3. Install the trim panel (1),
(Refer to 23 - BODY/DOOR - HALF REAR/TRIM PANEL - INSTALLATION).
