INSTALLATION



NOTE: Full door shown, half door similar.

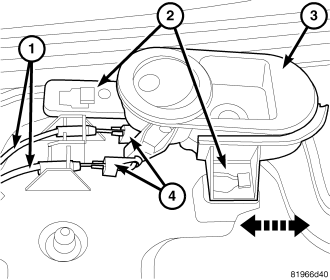

1. Position the handle (3) onto the carrier plate tabs (2) and slide into place fully.
2. Connect the rods (1) and secure the clips (4).





3. Install the handle screw (6) and tighten to 8.5 Nm (75 in. lbs.).

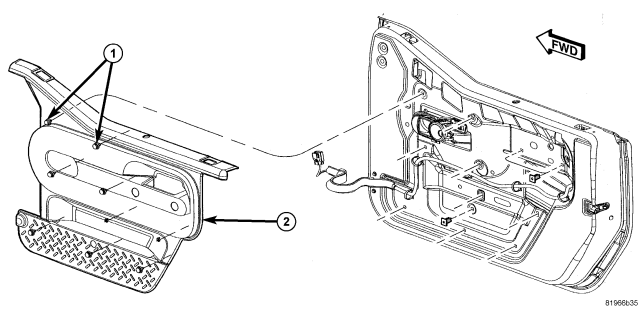

4. Install the trim panel (2),
(Refer to 23 - BODY/DOOR - HALF FRONT/TRIM PANEL - INSTALLATION).
