REMOVAL

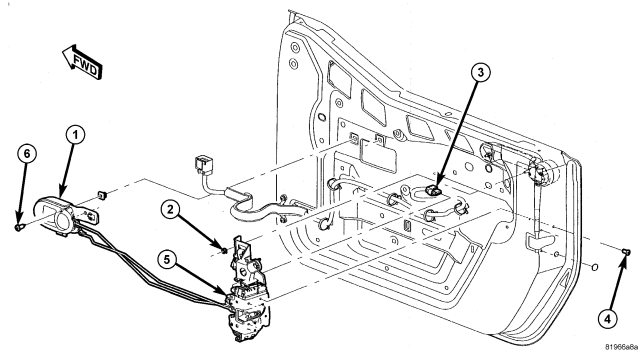

1. Remove the latch (5),
(Refer to 23 - BODY/DOOR - HALF FRONT/LATCH - REMOVAL).

NOTE: Full door shown, half door similar.

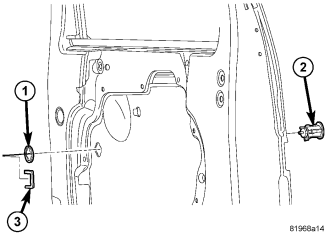

2. Remove the clip (3) and separate the lock cylinder (2) and gasket (1) from the door.
