ADJUSTMENTS

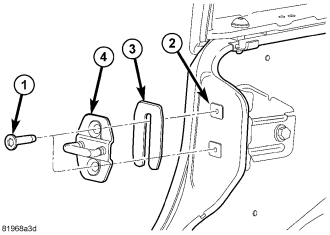

1. Using a grease pencil or equivalent, mark the location of the door latch striker (4) on the C-pillar to aid in adjustment.
2. Loosen the two screws (1) that secure the door latch striker to the C-pillar.
3. To adjust the rear gap and flush measurement, change the position of the door latch striker and then tighten the two bolts to 26 Nm (19 ft. lbs.),
(Refer to 23 - BODY/BODY STRUCTURE/GAP AND FLUSH - SPECIFICATIONS).
4. Verify correct door and latch position.
