REMOVAL

1. Remove the carrier plate (6), (Refer to 23 - BODY/DOOR - FULL REAR/CARRIER PLATE - REMOVAL).

NOTE: Front door shown, rear door similar.

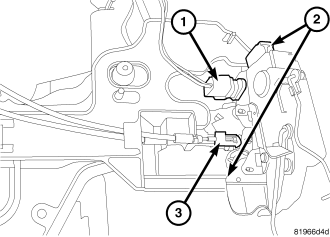

2. Disconnect the actuator rods.
3. Disconnect the electrical connector (1).
4. Disconnect the latch cables (3).
5. Slide the latch off the latch bracket tabs (2) and remove the latch.
