REMOVAL

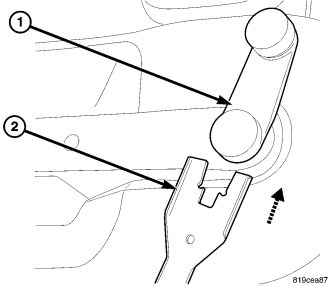

1. Using a standard window handle tool (2), release the handle clips and remove the handle (1) from the window lift mechanism, if equipped with a manual regulator.

NOTE: Full front door shown, rear door similar.

2. Remove the pull handle trim plugs (2) and remove the pull handle screws (3).
3. Remove the screws (1), if equipped.

NOTE: Full front door shown, rear door similar.

4. Using a trim stick C-4829 or equivalent, starting at the bottom by the check strap, separate the push pin fasteners (3) and remove the trim panel (1).
