REMOVAL



NOTE: A suitable body sealant should be used when removing or moving the hinges.


1. Remove the door (2),
(Refer to 23 - BODY/DOOR - FULL FRONT/DOOR - REMOVAL).


2. Using a grease pencil or equivalent, mark the body hinge (1) and (4) location and remove the bolts (2) and (3).

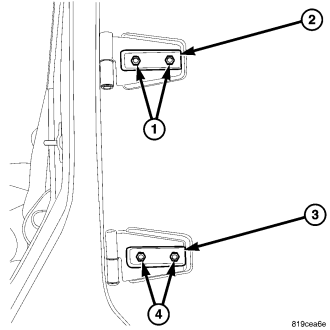

3. Using a grease pencil or equivalent, mark the door hinge (2) and (3) location and remove the bolts (1) and (4).
