INSTALLATION

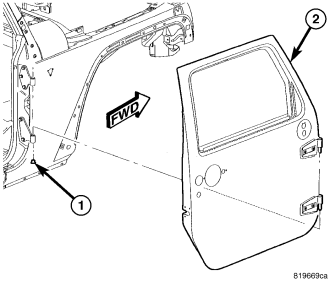

NOTE: Full front door shown, all others similar.


1. Align pins on door hinge to holes in hinge on body and position door into place.
2. Install the nuts (1) and tighten to 8.5 Nm (75 in. lbs.).
3. If necessary, adjust the door (2)
(Refer to 23 - BODY/DOOR - HALF REAR/DOOR - ADJUSTMENTS)

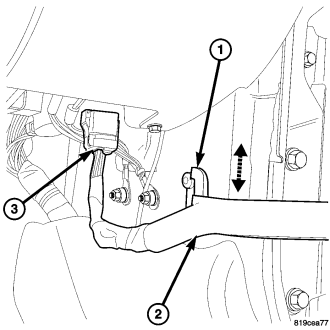

NOTE: Front door check strap shown, rear doors are similar.


4. Secure the check strap (2) over the footman's loop (1) and connect the electrical connector (3).



5. Install the lower B-pillar trim (2),
(Refer to 23 - BODY/INTERIOR/B-PILLAR TRIM - INSTALLATION).
