C2115–DYNAMICS SENSOR SUPPLY VOLTAGE HIGH

For a complete wiring diagram Refer to Section 8W.

When Monitored:
Upon ignition on, prior to switching the (G4) Dynamics Sensor Supply circuit power on.
Set Condition:
If the Anti-Lock Brakes Module detects voltage on the (G4) Dynamics Sensor Supply circuit when the circuit's power is turned off.

Possible Causes

WIRING HARNESS, TERMINAL, CONNECTOR DAMAGE

(G4) DYNAMICS SENSOR SUPPLY CIRCUIT SHORTED TO VOLTAGE

ANTI-LOCK BRAKES MODULE

1. VERIFY DTC IS ACTIVE

Turn the ignition on.
With the scan tool, read and record ABS DTCs.
With the scan tool, read and record Environmental Data (EV Data).
With the scan tool, erase ABS DTCs.
Cycle the ignition switch.
With the scan tool, read ABS DTCs.

Does this DTC reset?

Yes

Go To 2

No

Perform the ABS Intermittent Condition diagnostic procedure in this Section.
Refer to the ABS-INTERMITTENT CONDITION TEST. (Refer to 5 - BRAKES - DIAGNOSIS AND TESTING)

2. INSPECT RELATED WIRING HARNESS, TERMINALS, & CONNECTORS

Turn the ignition off.
Check all related wiring for pinched, chafed, pierced, and partially broken wires.
Check all related connectors for broken, bent, pushed out, and corroded terminals.

Were any problems found?

Yes

Repair as necessary.

Perform ABS VERIFICATION TEST. (Refer to 5 - BRAKES - STANDARD PROCEDURE).

No

Go To 3

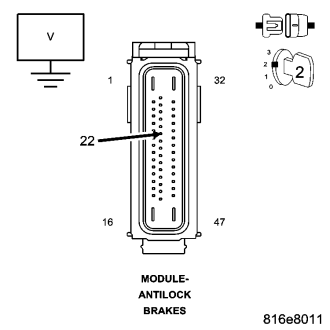

3. CHECK (G4) DYNAMICS SENSOR SUPPLY CIRCUIT SHORT FOR A SHORT TO VOLTAGE

Disconnect the Anti-Lock Brakes Module harness connector.
Turn the ignition on.
Measure the voltage of the (G4) Dynamics Sensor Supply Circuit.

Is the voltage above 0.2 volts?

Yes

Repair the (G4) Dynamics Sensor Supply Circuit for a short to voltage.

Perform ABS VERIFICATION TEST. (Refer to 5 - BRAKES - STANDARD PROCEDURE).

No

Replace the Anti-Lock Brakes Module in accordance with the Service Information.
Perform ABS VERIFICATION TEST. (Refer to 5 - BRAKES - STANDARD PROCEDURE).
