INSTALLATION

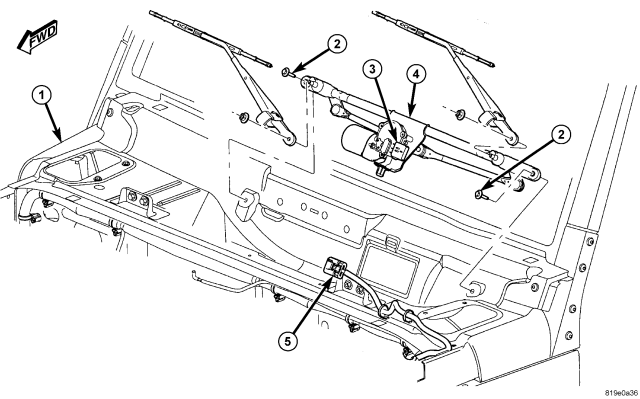

1. Position the front wiper module (4) into the cowl plenum as a unit.
2. Position the knob-like rubber isolator to the slot in the forward wall of the cowl plenum.
3. Install and tighten the two screws (2) that secure the ends of the front wiper module bracket to the cowl plenum. Tighten the screws 9.5 Nm (85 in. lbs.).
4. Reconnect the wire harness connector (5) to the connector receptacle for the front wiper motor (3).
5. Reinstall the cowl plenum cover/grille panel over the front wiper module. (Refer to 23 - BODY/EXTERIOR/COWL GRILLE AND SCREEN - INSTALLATION).

NOTE: Be certain to turn the ignition switch to the ON position, then turn the front wiper switch ON and OFF again to cycle the wiper motor and linkage to their natural park position before reinstalling the front wiper arms onto the wiper pivots.

6. Reinstall both front wiper arms onto the wiper pivots. (Refer to 8 - ELECTRICAL/WIPERS/WASHERS/WIPER ARM - INSTALLATION - FRONT).
7. Reconnect the battery negative cable.
