REAR

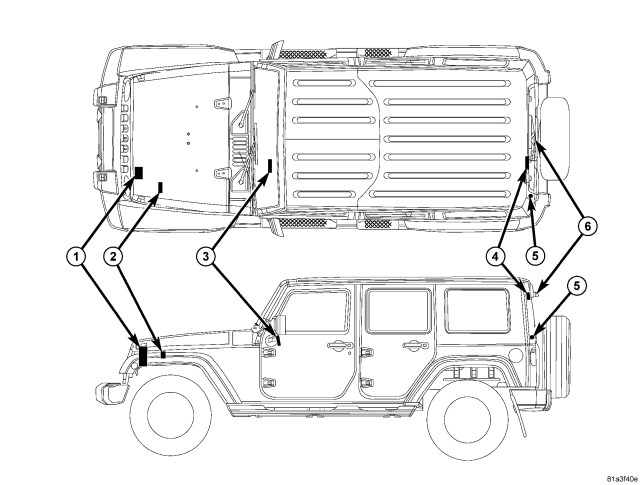

• ElectroMechanical Instrument Cluster - The ElectroMechanical Instrument Cluster (EMIC) (also known as the Cab Compartment Node/CCN) is located on the instrument panel directly in front of the driver. (Refer to 8 - ELECTRICAL/INSTRUMENT CLUSTER - DESCRIPTION).
• Rear Washer Check Valve (5) - A check valve is located in the hard top disconnect plate between the hard top washer supply hose and the body washer supply hose on the left inner D-pillar of the hard top.
• Rear Washer Nozzle - The fluidic rear washer nozzle is integral to the output shaft of the rear wiper motor on the left upper corner of the rear lift glass.
• Rear Washer Plumbing - The plumbing for the rear washer system consists of rubber hoses and molded plastic or rubber fittings. The plumbing is routed along the left side of the engine compartment from the washer reservoir, through the dash into the passenger compartment, down the left cowl side and sill to the body wire harness. The hose exits the body wire harness at the belt line of the left D-pillar where it connects through the rear check valve to a hard top hose that is routed up the D-pillar of the hard top to the upper lift glass opening header and then to the rear wiper motor.
• Rear Wiper Arm And Blade (6) - The single molded plastic rear wiper arm is secured by a nut directly to the rear wiper motor output shaft, which extends through a clearance hole near the upper left corner of the lift glass. The molded plastic rear wiper blade is secured by an integral pin to latches integral to the rear wiper arm, and is parked near the top of the lift glass when the rear wiper system is not in operation.
• Rear Wiper Motor (4) - The rear wiper motor includes the motor bracket and two rubber-isolated mounting tabs. The wiper motor output shaft is the only visible component of the rear wiper motor. The remainder of the motor is concealed by a molded plastic trim cover on the inner lift glass just below the lift glass opening header.
• Right Multi-Function Switch (3) - The right (wiper) multi-function switch and the left (lighting) multi-function switch are secured to brackets integral to the clockspring housing, on the top of the steering column just below the steering wheel. The right multi-function switch is connected by a short jumper harness to the Steering Control Module (SCM), which is internal to the left multi-function switch housing. Only the switch control stalk extending from the right side of the steering column is visible, while the remainder of the switch is concealed beneath the steering column shrouds. The right multi-function switch is dedicated to providing all of the driver controls for both the front and rear wiper and washer systems.
• Steering Control Module - The Steering Control Module (SCM) is internal to the left multi-function switch housing, which is secured to a bracket integral to the left side of the clockspring housing on the top of the steering column just below the steering wheel. Only the left switch control stalk extending from the left side of the steering column is visible, while the remainder of the switch housing containing the SCM is concealed beneath the steering column shrouds. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES/STEERING COLUMN CONTROL MODULE - DESCRIPTION).
• Totally Integrated Power Module (2) - The Totally Integrated Power Module (TIPM) is located in the engine compartment, near the battery. (Refer to 8 - ELECTRICAL/POWER DISTRIBUTION/TOTALLY INTEGRATED POWER MODULE - DESCRIPTION).
• Washer Pump/Motor - The reversible dual electric washer pump/motor unit is located in a dedicated hole in a sump area on the lower washer reservoir. The dual washer pump/motor provides washer fluid to either the front or rear washer system plumbing, depending upon the direction of the pump motor rotation.
• Washer Reservoir (1) - The rear washer system shares a single reservoir and reversible pump with the front washer system, but has its own dedicated plumbing. The washer reservoir is located in the left front corner of the engine compartment. The filler cap is also accessed from the left front corner of the engine compartment.

Hard wired circuitry connects the rear wiper and washer system components to the electrical system of the vehicle. These hard wired circuits are integral to several wire harnesses, which are routed throughout the vehicle and retained by many different methods. These circuits may be connected to each other, to the vehicle electrical system and to the rear wiper and washer system components through the use of a combination of soldered splices, splice block connectors, and many different types of wire harness terminal connectors and insulators. Refer to the appropriate wiring information. The wiring information includes wiring diagrams, proper wire and connector repair procedures, further details on wire harness routing and retention, as well as pin-out and location views for the various wire harness connectors, splices and grounds.
