DIESEL ENGINE

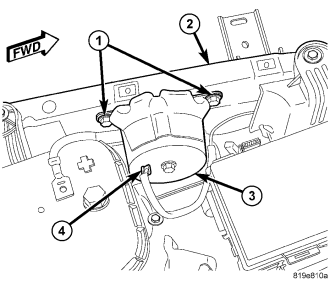

1. Check to be certain that the two spring nuts are in good condition and properly installed in the inboard side of the left front fender load path beam (2).
2. Position the alarm siren module and bracket (3) to the load path beam as a unit.
3. Install and tighten the two screws (1) that secure the siren mounting bracket to the two spring nuts in the load path beam. Tighten the screws to 8 Nm (71 in. lbs.).
4. Reconnect the engine compartment wire harness connector (4) to the connector receptacle of the siren.
5. Reconnect the battery negative cable.

NOTE: If the alarm siren module has been replaced with a new unit, a diagnostic scan tool MUST be used to initialize and configure the new unit in the Intrusion Transceiver Module (ITM) before the Vehicle Theft Security System (VTSS) can operate as designed. Follow the programming steps outlined in the diagnostic scan tool for INITIALIZE SIREN under MISCELLANEOUS FUNCTIONS for the INTRUSION TRANSCEIVER MODULE/ITM menu item as appropriate.
