BULB

NOTE: The front side marker lamps are used only on vehicles manufactured for domestic markets, while repeater lamps are used only on vehicles manufactured for export markets. The service procedures for the bulbs of these two unique lamps are the same.

1. Disconnect and isolate the battery negative cable.

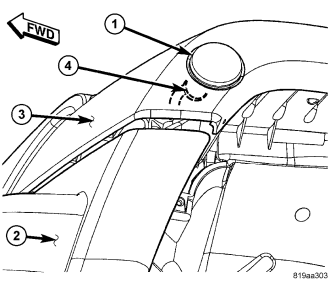

2. Reach between the front wheel flare (3) and the front tire above the front bumper (2) to access the back of the lamp (1).
3. Firmly grasp the bulb socket (4) and connector on the back of the lamp and rotate it counterclockwise about 30 degrees to unlock it.
4. Pull the socket and bulb straight out from the keyed opening in the housing.
5. Pull the base of the bulb straight out of the socket.
