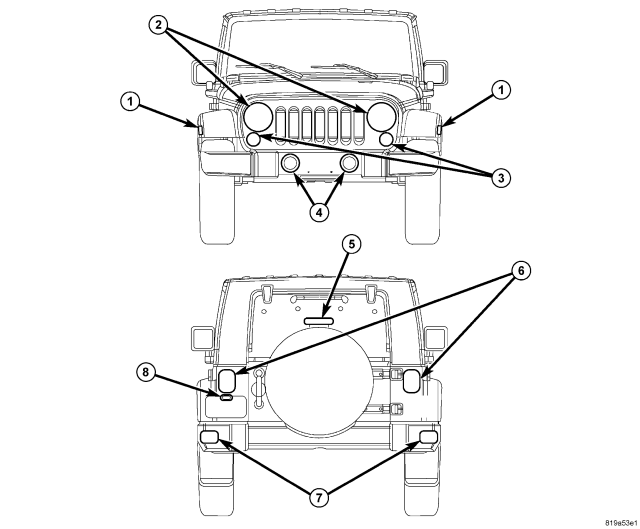

The exterior lighting system for this vehicle includes the following exterior lamp units:

• Center High Mounted Stop Lamp (5) - A standard equipment Center High Mounted Stop Lamp (CHMSL) is mounted to a stanchion that is integral to the spare tire carrier centered on the swing gate at the rear of the vehicle.
• Front Fog Lamps (4) - Optional equipment front fog lamp units are mounted inboard of the bumperettes of the front bumper on vehicles manufactured for domestic markets, or outboard of the bumperettes on vehicles manufactured for export markets.
• Front Park/Turn Lamps (3) - A standard equipment front park/turn lamp unit is mounted at each lower outboard corner of the grille panel.
• Front Position Lamps - A front position lamp is integral to each headlamp unit on vehicles manufactured for export markets where they are required.
• Front Side Marker or Repeater Lamps (1) - A standard equipment front side marker lamp is located near the front of each front fender flare on vehicles manufactured for domestic markets. The front side marker lamps are replaced with a standard repeater lamp mounted in the same location on vehicles manufactured for export markets where they are required.
• Headlamps (2) - A standard equipment front headlamp is mounted to the front end module support at each upper outboard corner of the grille panel.
• License Plate Lamps (8) - A single standard equipment rear license plate lamp unit is integral to the license plate mounting bracket just below the left rear lamp unit on vehicles manufactured for domestic markets. A bracket with two rear license plate lamps is located on the rear bumper directly below the spare tire on vehicles manufactured for export markets.
• Rear Fog Lamps (7) - Rear fog lamp units are mounted on the outboard ends of the rear bumpers on vehicles manufactured for export markets where they are required.
• Rear Lamp Units (6) - A standard equipment rear lamp unit is mounted to the rear of each rear body corner panel on either side of the swing gate opening.
• Underhood Lamp - Vehicles equipped with this option have a single underhood lamp unit with an integral automatic mechanical (non-mercury) switch. The lamp and switch unit is mounted to the underside of the inner hood reinforcement above the right side of the engine compartment.

These exterior lighting lamp units and their controls are combined to provide the following exterior lighting features:

• Backup Lamps - The backup (or reverse) lamps include a clear bulb, reflector and clear lens that are integral to each rear lamp unit.
• Brake Lamps - The brake (or stop) lamps include a clear bulb, reflector and red lens that are integral to each rear lamp unit, and the red lens and multiple Light-Emitting Diode (LED) units of the CHMSL.
• Daytime Running Lamps - Daytime Running Lamps (DRL) are standard equipment on vehicles manufactured for sale in Canada and optional on vehicles manufactured for the United States. Vehicles with DRL illuminate the high beam filament of each headlamp bulb at a reduced intensity to serve as the DRLs.
• Exterior Lamp Fail-Safe Operation - The ElectroMechanical Instrument Cluster (EMIC) (also known as the Cab Compartment Node/CCN) and the Totally Integrated Power Module (TIPM) provide a fail-safe feature which will automatically turn ON the low beam headlamps and all park lamps when the ignition switch is in the ON position and there is no detected input from the Steering Control Module (SCM), or when there is no communication over the Local Interface Network (LIN) or Controller Area Network (CAN) data buses.
• Exterior Lamp Load Shedding - The TIPM provides a battery saver feature which will automatically turn OFF all exterior lamps that remain ON with the ignition switch in the LOCK position after a timed interval of about eight minutes.
• Front Fog Lamps - The standard equipment front fog lamps include the clear bulb, reflector and clear lens of each adjustable front fog lamp unit.
• Hazard Warning Lamps - The hazard warning lamps include the bulbs, reflectors and lenses of each lamp in the right and left, front and rear turn signal circuits.
• Headlamp Delay - The standard equipment low or high beam headlamps remain illuminated for a customer-programmable delay period of 0 (disabled), 30, 60 or 90 seconds when the headlamps are turned OFF after the ignition switch has been turned to the OFF position.
• Headlamps - The headlamps include a single, dual filament halogen bulb, a reflector and a clear lens integral to each headlamp unit. Headlamps for domestic markets are vertically adjustable, while those for export markets are both vertically and horizontally adjustable.
• Headlamp Leveling - Headlamp leveling is available only in certain markets where it is required equipment. A headlamp leveling actuator motor attached to each headlamp mounting collar and a headlamp leveling switch integral to the switch pod in the instrument panel center stack allow the headlamp beam pattern to be adjusted by the vehicle operator from the interior of the vehicle to compensate for variable passenger or cargo loads.
• Optical Horn - Also known as flash-to-pass, the beam selection function of the left (lighting) multi-function switch control stalk has a momentary intermediate position that allows the headlamp high beams to be flashed momentarily, without changing the headlamp beam selection.
• Park Lamps - The front park lamps include the bulbs, reflectors and amber lenses integral to each front park/turn lamp unit and, if the vehicle is so equipped, the clear position lamp bulb integral to each headlamp unit. The rear park lamps include the clear bulbs, reflectors and red lenses integral to each rear lamp unit as well as the bulbs and lenses of the rear license plate lamp or lamps.
• Rear Fog Lamps - Rear fog lamps are available only in certain markets where they are required equipment. The rear fog lamps include a clear bulb and a red lens and reflector that are integral to each rear lamp unit.
• Turn Signal Lamps - The front turn signal lamps include a clear bulb, a reflector and an amber lens that are integral to each front park/turn lamp unit. In certain markets where they are required, the repeater lamps on each front fender flare will also be included in the front turn signal circuits. The domestic market rear turn signal lamps include a clear bulb, a reflector and a red lens integral to each rear lamp unit; while the export market rear turn signal lamps include an amber bulb, a reflector and a clear lens that are integral to each rear lamp unit.

Other components of the exterior lighting system for this vehicle include:
