U1149-LOST COMMUNICATION WITH MULTIFUNCTION SWITCH (STEERING CONTROL MODULE)

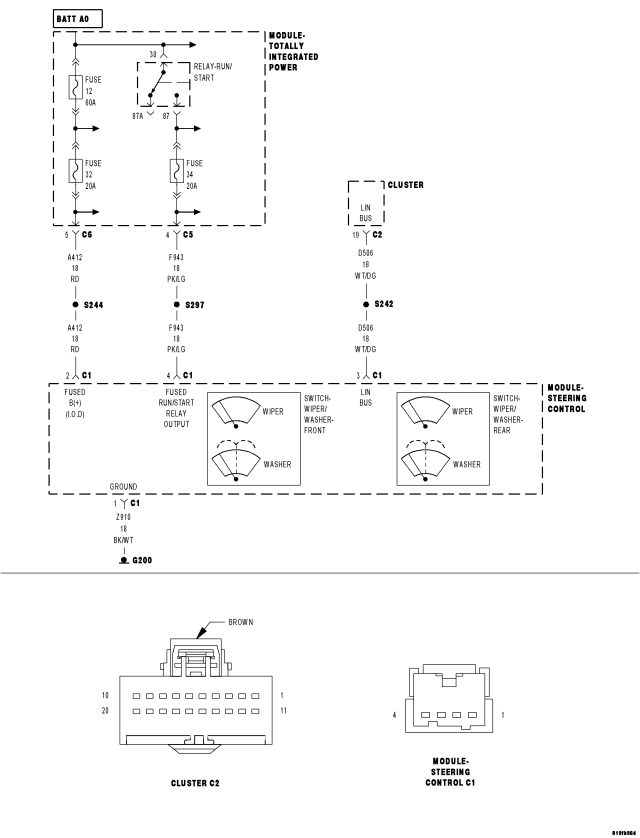

For a complete wiring diagram Refer to Section 8W.



Possible Causes
(D506) LIN BUS CIRCUIT OPEN
(F943) FUSED RUN/START RELAY OUTPUT CIRCUIT OPEN
(A412) FUSED B(+) (I.O.D.) CIRCUIT OPEN
(Z910) GROUND CIRCUIT OPEN
STEERING CONTROL MODULE
CLUSTER




Diagnostic Test

1. CHECK FOR AN ACTIVE DTC

Turn the ignition on.
With the scan tool, record and erase DTCs.
Wait 30 seconds.
With the scan tool, read DTCs.

Does the scan tool display this DTC as active?

Yes


No

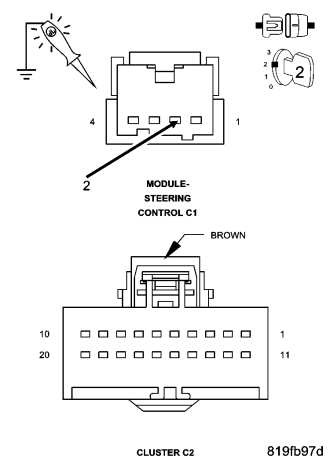

2. (D506) LIN BUS CIRCUIT



Turn the ignition off.
Disconnect the Steering Control Module harness connector.
Turn the ignition on.
Measure the voltage of the (D506) LIN BUS circuit.

Is the voltage above 5 volts?

Yes


No

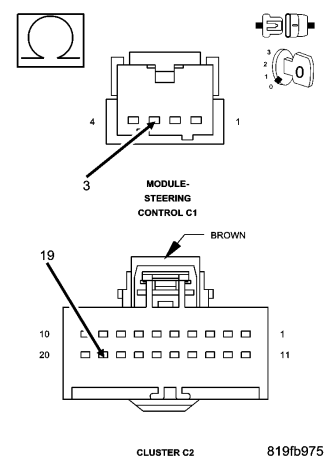

3. (D506) LIN BUS CIRCUIT OPEN



Turn the ignition off.
Disconnect the Cluster C2 harness connector.
Measure the resistance of the (D506) LIN BUS circuit.

Is the resistance below 10K ohms?

Yes


No

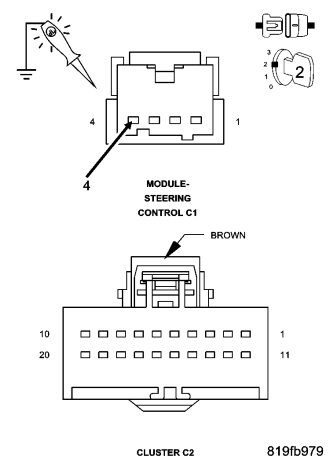

4. (F943) FUSED RUN/START RELAY OUTPUT CIRCUIT OPEN



Turn the ignition on.
Using a 12-volt test light connected to ground, check the (F943) Fused RUN/START Relay Output circuit at the Steering Control Module harness connector.

Does the test light illuminate brightly?

Yes


No

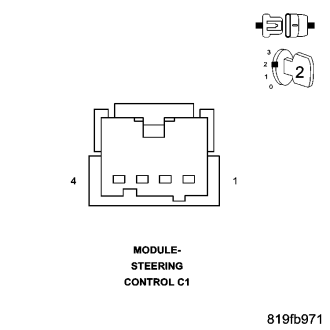

5. (A412) FUSED B(+) (I.O.D.) CIRCUIT OPEN



Turn the ignition on.
Using a 12-volt test light connected to ground, check the (A412) Fused B+ (I.O.D.) circuit at the Steering Control Module harness connector.

Does the test light illuminate brightly?

Yes


No

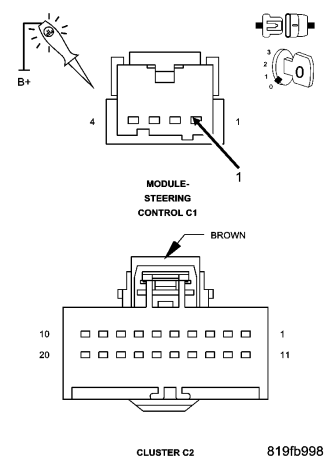

6. (Z910) GROUND CIRCUIT OPEN



Turn the ignition off.
Using a 12-volt test light connected to 12-volts, check the (Z910) Ground circuit at the Steering Control Module harness connector.

Does the test light illuminate brightly?

Yes


No
