B1615-PANEL ILLUMINATION CONTROL CIRCUIT OPEN

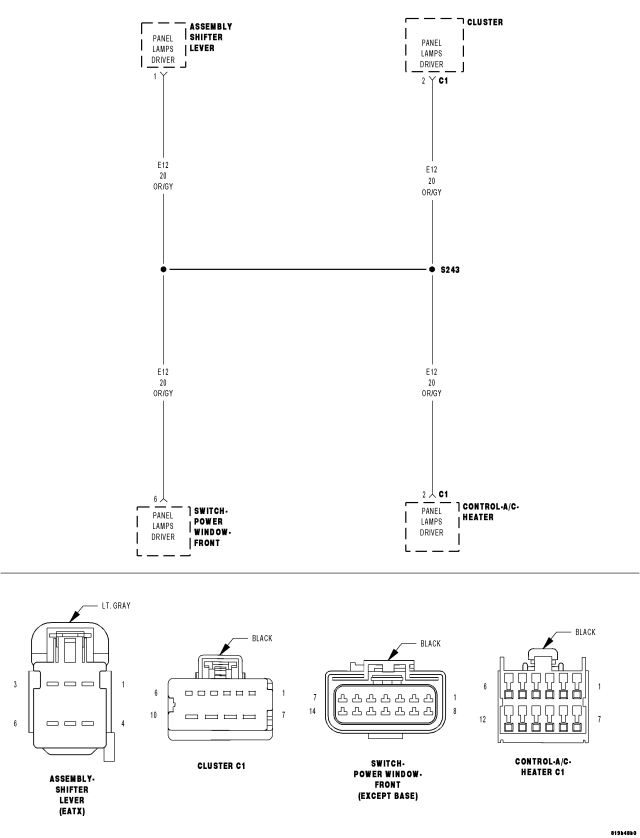

For a complete wiring diagram Refer to Section 8W.
Possible Causes
|
(E12) PANEL LAMPS DRIVER CIRCUIT OPEN
|
INSTRUMENT CLUSTER
|
Diagnostic Test
1.
CHECK FOR AN ACTIVE DTC
Turn the ignition on.
With the scan tool, record and erase DTCs.
Activate the Panel Illumination.
Wait 30 seconds.
With the scan tool, read DTCs.
Does the scan tool display this DTC as active?
Yes
No
-
The condition that caused this code to set is not present at this time. Check for an intermittent condition by inspecting the related wiring harness for chafed,
pierced, pinched, and partially broken wires. Also inspect the related connectors for broken, bent, pushed out, spread, corroded, or contaminated terminals.
-
Perform BODY VERIFICATION TEST - VER 1.
(Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
2.
CHECK THE (E12) PANEL LAMPS DRIVER CIRCUIT FOR AN OPEN
Turn the ignition off.

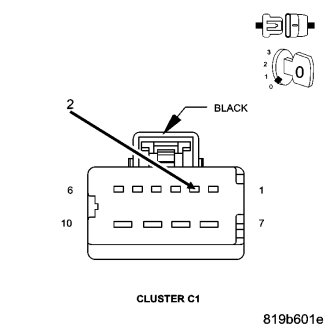

Disconnect the Cluster C1 harness connector.
Inspect the connector and associated wiring for the Panel illumination circuit.
Using a fused jumper wire connected to 12 volts, probe cavity 2 of the Cluster C1 harness connector.
Did the components illuminate?
Yes
No
