REMOVAL
WARNING:
Remove metallic jewelry to avoid injury by accidental arcing of battery current.
WARNING:
The battery negative and positive cable polarity are different from the gasoline engine equipped vehicles to the diesel engine equipped vehicles. Please note the location
of the positive and negative cables prior to service of the battery or related components.
NOTE:
Left hand drive gasoline engine shown, left hand drive diesel similar. Right hand drive gasoline and diesel similar with the battery and related components packaged on the
left side of the engine compartment.

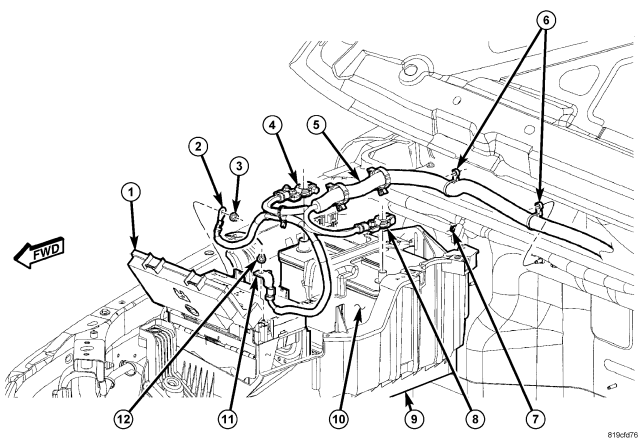

1.
Loosen the pinch clamp bolt and disconnect and isolate the battery negative cable (8).
2.
Loosen the pinch clamp bolt and disconnect the battery positive cable (4).
3.
Remove the positive cable retaining nut (12) from the mounting stud on the Totally Integrated Power Module (1). Remove the cable (11) from the stud.
4.
Remove the negative cable retaining nut (3) from the mounting stud on the inner fender. Remove the cable (2) from the stud.
5.
Disconnect the cable assembly (5) routing clips (6) from the mounting studs (7).

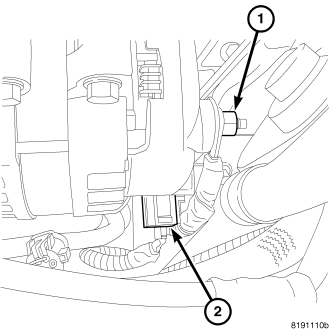

6.
Remove the battery cable nut (1) from the B+ terminal of the generator. Remove the cable from the generator.
7.
Remove the battery cable from the B+ terminal of the starter motor (1).
8.
Remove the negative battery cable from the engine block ground.
9.
One at a time, trace any remaining battery cable retaining pushpins, fasteners and routing clips until the cables are free from the vehicle.
10.
Remove the battery cables from the engine compartment.
