*NO RESPONSE FROM OCM (OCCUPANT CLASSIFICATION MODULE)

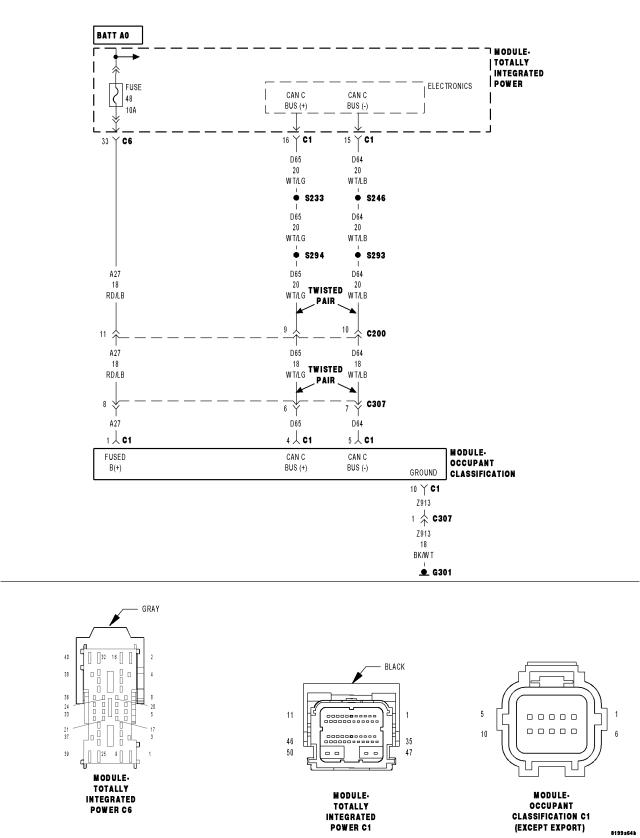

For a complete wiring diagram Refer to Section 8W.



Possible Causes
(Z913) GROUND CIRCUIT OPEN
(A27) FUSED B+ CIRCUIT OPEN OR SHORTED
(D65) CAN C BUS (+) CIRCUIT OPEN
(D64) CAN C BUS (-) CIRCUIT OPEN
OCCUPANT CLASSIFICATION MODULE




Diagnostic Test

1. TEST FOR INTERMITTENT CONDITION

Turn the ignition on.

NOTE: Ensure the IOD fuse is installed and battery voltage is between 10.0 and 16.0 volts.


With the scan tool, select ECU View.

NOTE: A red X will be next to the module that is not communicating, indicating that the module is not active on the Bus network. A green check indicates that the module is active on the Bus network.



Does the scan tool display a red X next to the module?

Yes


No

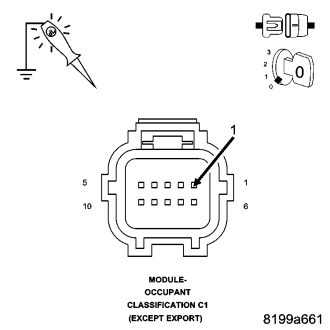

2. (Z913) GROUND CIRCUIT OPEN



Disconnect the Occupant Restraint Controller Module harness connectors.
Using a 12-volt test light connected to 12-volts, check the (Z913) ground circuit.

Does the test light illuminate brightly?

Yes


No

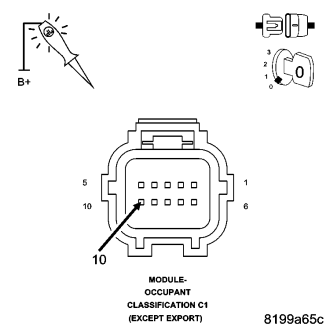

3. (A27) FUSED B+ CIRCUIT OPEN OR SHORTED



Using a 12-volt test light connected to ground, check the (A27) Fused B+ circuit.

Does the test light illuminate brightly?

Yes


No

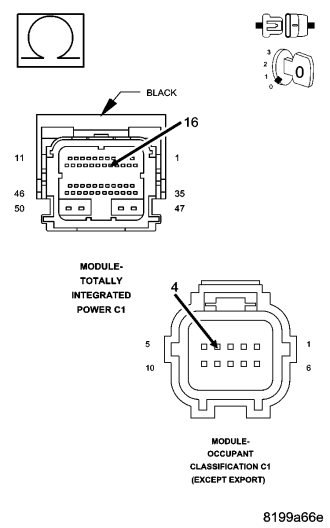

4. (D65) CAN C BUS (+) CIRCUIT OPEN



Turn the ignition off.
Disconnect the TIPM C1 harness connector.
Measure the resistance of the (D65) CAN C Bus (+) circuit between the TIPM C1 harness connector and the Occupant Classification Module connector.

Is resistance below 5.0 ohms?

Yes


No

5. (D64) CAN C BUS (-) CIRCUIT OPEN



Measure the resistance of the (D64) CAN C Bus (-) circuit between the TIPM C1 harness connector and the Occupant Classification Module connector.

Is resistance below 5.0 ohms?

Yes


No
