U0001-CAN C BUS CIRCUIT

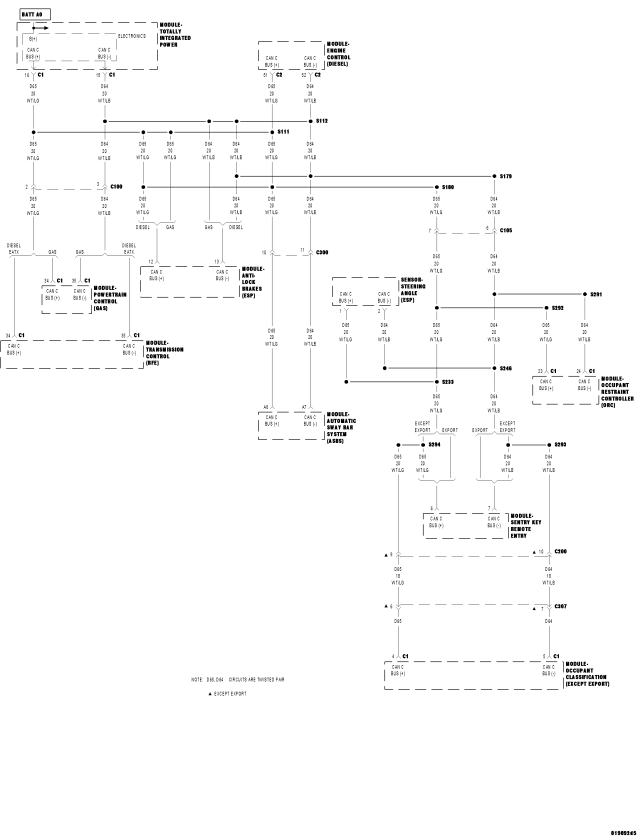

The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.

2. ANTILOCK BRAKE MODULE — INTERNAL SHORT

Turn the ignition off.
Disconnect the Antilock Brake Module harness connector.
Turn the ignition on.
With the scan tool, record and erase TIPM DTC's.
Cycle the ignition from on to off 3 times.
Turn the ignition on.
With the scan tool, read active TIPM DTC's.

Does the scan tool display U0001-CAN C BUS OFF PERFORMANCE as active?

Yes

Go To 3

Inspect the wiring and connectors for damage or shorted circuits in accordance with the service information.
Perform the *AIRBAG SYSTEM VERIFICATION TEST - VER 1.

3. POWERTRAIN CONTROL MODULE — INTERNAL SHORT

Turn the ignition off.
Disconnect the Powertrain Control Module C1 harness connector.
Turn the ignition on.
With the scan tool, record and erase TIPM DTC's.
Cycle the ignition from on to off 3 times.
Turn the ignition on.
With the scan tool, read active TIPM DTC's.

Does the scan tool display U0001–CAN C BUS CIRCUIT as active?

Yes

Go To 4

Inspect the wiring and connectors for damage or shorted circuits. If ok, replace and program the Powertrain Control Module in accordance with the service information.
Perform (NGC) POWERTRAIN VERIFICATION TEST VER - 5.

4. ENGINE CONTROL MODULE (DIESEL ONLY) — INTERNAL SHORT

Turn the ignition off.

NOTE: If vehicle is not equipped with this module, answer yes to the question.

Disconnect the Engine Control Module harness connectors.
Turn the ignition on.
With the scan tool, record and erase TIPM DTC's.
Cycle the ignition from on to off 3 times.
Turn the ignition on.
With the scan tool, read active TIPM DTC's.

Does the scan tool display U0001–CAN C BUS CIRCUIT as active?

Yes

Go To 5

Inspect the wiring and connectors for damage or shorted circuits. If ok, replace and program the Engine Control Module in accordance with the service information.
Perform the ECM VERIFICATION TEST.

5. TRANSMISSION CONTROL MODULE — INTERNAL SHORT

Turn the ignition off.

NOTE: If vehicle is not equipped with this module, answer yes to the question.

Disconnect the Transmission Control Module harness connectors.
Turn the ignition on.
With the scan tool, record and erase TIPM DTC's.
Cycle the ignition from on to off 3 times.
Turn the ignition on.
With the scan tool, read active TIPM DTC's.

Does the scan tool display U0001–CAN C BUS CIRCUIT as active?

Yes

Go To 6

Inspect the wiring and connectors for damage or shorted circuits. If ok, replace and program the Transmission Control Module in accordance with the service information.
Perform the TCM VERIFICATION TEST.

6. STEERING ANGLE SENSOR — INTERNAL SHORT

Turn the ignition off.

NOTE: If vehicle is not equipped with this module, answer yes to the question.

Disconnect the Steering Angle Sensor harness connector.
Turn the ignition on.
With the scan tool, record and erase TIPM DTC's.
Cycle the ignition from on to off 3 times.
Turn the ignition on.
With the scan tool, read active TIPM DTC's.

Does the scan tool display U0001–CAN C BUS CIRCUIT as active?

Yes

Go To 7

Inspect the wiring and connectors for damage or shorted circuits. If ok, replace the Steering Angle Sensor in accordance with the service information.
Perform the BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE).

7. AUTOMATIC SWAY BAR SYSTEM MODULE — INTERNAL SHORT

Turn the ignition off.

NOTE: If vehicle is not equipped with this module, answer yes to the question.

Disconnect the Automatic Sway Bar System Module harness connector.
Turn the ignition on.
With the scan tool, record and erase TIPM DTC's.
Cycle the ignition from on to off 3 times.
Turn the ignition on.
With the scan tool, read active TIPM DTC's.

Does the scan tool display U0001–CAN C BUS CIRCUIT as active?

Yes

Go To 8

Inspect the wiring and connectors for damage or shorted circuits. If ok, replace the Automatic Sway Bar System Module in accordance with the service information.
Perform the BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE).

8. WIRELESS CONTROL MODULE — INTERNAL SHORT

Turn the ignition off.

NOTE: If vehicle is not equipped with this module, answer yes to the question.

Disconnect the Wireless Control Module harness connector.
Turn the ignition on.
With the scan tool, record and erase TIPM DTC's.
Cycle the ignition from on to off 3 times.
Turn the ignition on.
With the scan tool, read active TIPM DTC's.

Does the scan tool display U0001–CAN C BUS CIRCUIT as active?

Yes

Go To 9

Inspect the wiring and connectors for damage or shorted circuits. If ok, replace the Wireless Control Module in accordance with the service information.
Perform the BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE).

9. OCCUPANT RESTRAINT CONTROLLER MODULE — INTERNAL SHORT

Turn the ignition off.

NOTE: If vehicle is not equipped with this module, answer yes to the question.

Disconnect the Occupant Restraint Controller Module harness connectors.
Turn the ignition on.
With the scan tool, record and erase TIPM DTC's.
Cycle the ignition from on to off 3 times.
Turn the ignition on.
With the scan tool, read active TIPM DTC's.

Does the scan tool display U0001–CAN C BUS CIRCUIT as active?

Yes

Go To 10

Inspect the wiring and connectors for damage or shorted circuits. If ok, replace the Occupant Restraint Controller Module in accordance with the service information.
Perform the BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE).

10. OCCUPANT CLASSIFICATION MODULE — INTERNAL SHORT

Turn the ignition off.

NOTE: If vehicle is not equipped with this module, answer yes to the question.

Disconnect the Occupant Classification Module harness connectors.
Turn the ignition on.
With the scan tool, record and erase TIPM DTC's.
Cycle the ignition from on to off 3 times.
Turn the ignition on.
With the scan tool, read active TIPM DTC's.

Does the scan tool display U0001–CAN C BUS CIRCUIT as active?

Yes

Go To 11

Inspect the wiring and connectors for damage or shorted circuits. If ok, replace the Occupant Classification Module in accordance with the service information.
Perform the BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE).

11. (D64) CAN C BUS (-) CIRCUIT SHORTED TO VOLTAGE

Measure the voltage between the (D64) CAN C Bus (-) circuit and ground.

Is there any voltage present?

Yes

Repair the (D64) CAN C Bus (-) circuit for a short to voltage.

Perform the BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE).

Go To 12

12. (D65) CAN C BUS (+) CIRCUIT SHORTED TO GROUND

Turn the ignition off.

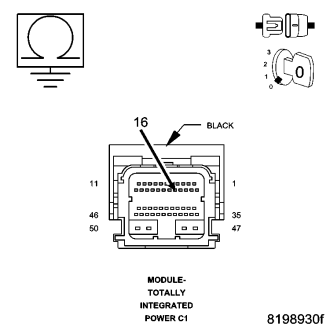

Measure the resistance between ground and the (D65) CAN C Bus (+) circuit.

Is any resistance present?

Yes

Repair the (D65) CAN C Bus (+) circuit for a short to ground.

Perform the BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE).

Go To 13

13. (D65) CAN C BUS (+) CIRCUIT SHORTED TO (D64) CAN C BUS (-) CIRCUIT

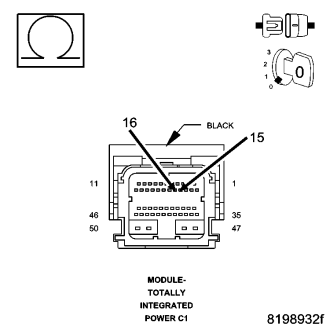

Measure the resistance between the (D65) CAN C Bus (+) circuit and the (D64) CAN C Bus (-) circuit.

Is any resistance present?

Yes

Repair the (D65) CAN C Bus (+) circuit for a short to the (D64) CAN C Bus (-) circuit.

Perform the BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE).

Inspect the wiring and connectors for damage or shorted circuits. If ok, replace and program the Totally Integrated Power Module in accordance with the service information.
Perform the BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE).
