REMOVAL

WARNING: On vehicles equipped with airbags, disable the airbag system before attempting any steering wheel, steering column, or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to take the proper precautions could result in accidental airbag deployment and possible personal injury.

Tweeter	Refer to TWEETER removal procedure.
Instrument panel speaker – driver	Refer to INSTRUMENT PANEL SPEAKER – DRIVER removal procedure.
Instrument panel speaker – passenger	Refer to INSTRUMENT PANEL SPEAKER – PASSENGER removal procedure.
Sound bar speaker	Refer to SOUND BAR removal procedure.
Subwoofer	Refer to SUBWOOFER removal procedure.

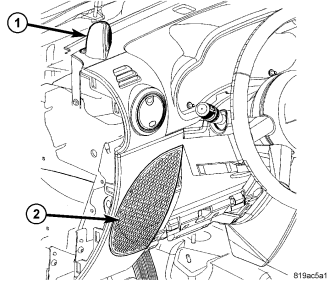

TWEETER

1. Disconnect the battery negative cable.
2. Remove the mounting fastener.
3. Remove the tweeter (1).
4. Disconnect the electrical connector.

INSTRUMENT PANEL SPEAKER – DRIVER

1. Disconnect the battery negative cable.
2. Remove the instrument panel end cap.
3. Remove the steering column opening cover.
4. Remove the amplifier. Refer to (Refer to 8 - ELECTRICAL/AUDIO/AMPLIFIER - REMOVAL).

5. Disconnect the electrical connector.
6. Remove the mounting fasteners in the left side of the instrument panel.
7. Remove the speaker mounting fasteners.
8. Remove the speaker (2) by carefully pulling the left side of the instrument panel outward until there is sufficient room to remove the speaker through the end cap area.

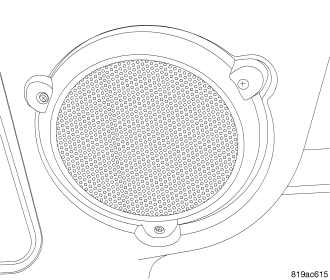

INSTRUMENT PANEL SPEAKER – PASSENGER

1. Disconnect the battery negative cable.
2. Remove the glove box.
3. Remove the instrument panel end cap.
4. Disconnect the electrical connectors.
5. Remove the speaker mounting fasteners.
6. Remove the speaker.

SOUND BAR

1. Disconnect the battery negative cable.
2. Remove the mounting fasteners and remove the speaker cover grille.
3. Remove the speaker.
4. Disconnect the electrical connector.

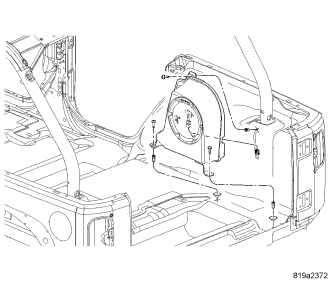

SUBWOOFER

1. Disconnect the battery negative cable.
2. Remove the mounting fasteners and remover the speaker cover grille.
3. Remove the speaker.
4. Disconnect the electrical connector.
