REMOVAL
ENGINE-TO-BODY GROUND STRAP
WARNING:
On vehicles equipped with airbags, disable the airbag system before attempting any steering wheel, steering column, or instrument panel component diagnosis or service. Disconnect
and isolate the battery negative (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the
airbag system. Failure to take the proper precautions could result in accidental airbag deployment and possible personal injury.
1.

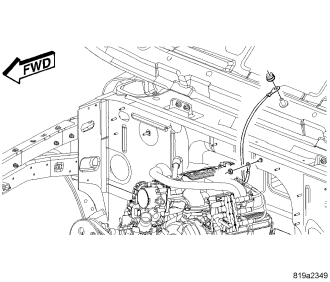

Remove the screw that secures the engine-to-body ground strap eyelet to the hood panel center reinforcement.
2.
Remove the screw that secures the engine-to-body ground strap eyelet to the dash panel.
3.
Remove the nut that secures the engine-to-body ground strap eyelet to the stud on the left upper rear corner of the engine cylinder head.
4.
Remove the engine-to-body ground strap eyelet from the stud on the left upper rear corner of the engine cylinder head.
5.
Remove the engine-to-body ground strap from the engine compartment.
