INSTALLATION

WARNING: On vehicles equipped with airbags, (refer to electrical/restraints) before attempting any steering wheel, steering column, or instrument panel component diagnosis or service. Failure to take the proper precautions could result in accidental airbag deployment and possible personal injury.

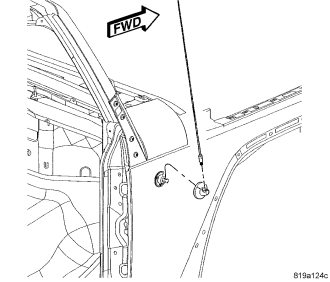

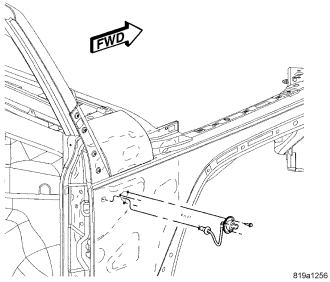

1. From outside the vehicle, feed the antenna cable and base assembly through the outer cowl side panel and into the inner cowl side panel hole.
2. From inside the passenger compartment, pull the cable and grommet into the hole in the inside cowl side panel until the grommet is fully seated.
3. Install the three screws retaining the antenna body base to right outer cowl side panel. Tighten the screws to 3.3 Nm (30 in. lbs.).



4. Snap on the antenna base trim cover to the antenna body base.
5. Install antenna mast. Tighten to 5 Nm (46 in. lbs.). Ensure that the antenna mast is fully seated on antenna base and that there is no gap between the mast and base.
6. Reach through the glove box opening and connect the two antenna coaxial cables in line connector.
7. Install the glove box to the instrument panel
(Refer to 23 - BODY/INSTRUMENT PANEL/GLOVE BOX - INSTALLATION).
8. Connect the battery negative cable.
