REMOVAL

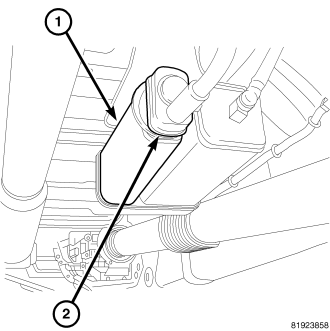

The EVAP canister (1) is located under the vehicle next to the rear prop shaft. The ESIM switch (2) is attached to the EVAP canister.

1.
Raise and support vehicle.
2.
Clean dirt or debris from canister vacuum lines.
3.

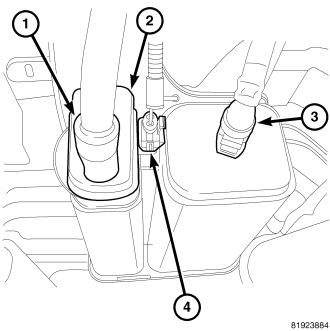

Disconnect electrical connector (4) at ESIM switch (2).
4.
Disconnect rubber hose (1) from ESIM switch.
5.
Disconnect fitting (3) at EVAP canister.

6.

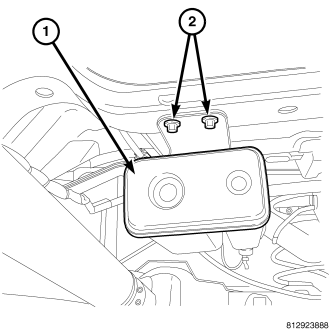

Remove two bolts (2) at front of canister mounting bracket (1).
7.
Remove two bolts at rear of canister mounting bracket.

8.

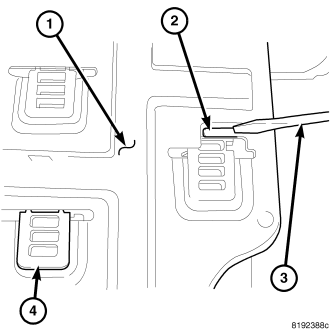

To separate EVAP canister (4) from mounting bracket (1), pry on lock-tab (2).
