INSTALLATION

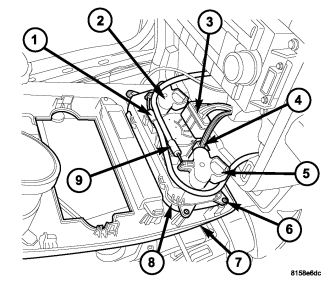

NOTE: Typical A/C-heater control and center bezel shown.


1. Install the A/C-heater control (8) into the instrument panel center bezel (7).
2. Install the four screws (6) that secure the A/C-heater control to the center bezel. Tighten the screws to 2 Nm (17 in. lbs.).
3. Position the center bezel to the instrument panel and connect the wire harness connectors (3 and 4) to the back of the A/C-heater control.

NOTE: Install the mode control cable onto the A/C heater control first. Then install the temperature control cable.


4. Connect the control cables (1 and 9) to the mode door control sector gear (2) and the temperature control sector gear (5) and fully engaged the retaining clips. Make sure the retaining clips are fully engage to the sector gears.
5. Connect the control cables to the back of the A/C-heater control and fully engage the retaining clips. Make sure the retaining clips are fully engaged to the back of the A/C-heater control.
6. Connect the wire harness connectors to the switches and power outlets, as equipped and install the center bezel to the instrument panel (refer to 23 - BODY/INSTRUMENT PANEL/BEZEL-CENTER - INSTALLATION).
7. Reconnect the negative battery cable.
