INSTALLATION




1. Position the recirculation door actuator (2) to the right side of the HVAC air inlet housing (1) and connect the instrument panel wire harness connector to the actuator.

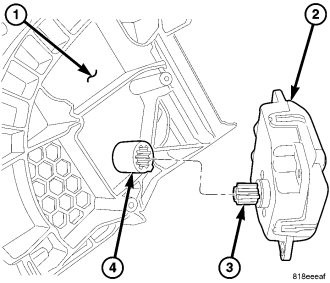

2. Install the recirculation door actuator onto the air inlet housing. If necessary, rotate the actuator slightly to align the splines on the actuator output shaft (3) with those on the recirculation door pivot shaft adapter (4).

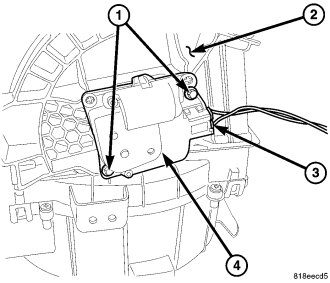

3. Install the two screws (1) that secure the recirculation door actuator (4) to the air inlet housing (2). Tighten the screws to 1.2 Nm (10 in. lbs.).
4. Verify the instrument panel wire harness connector (3) is securely attached to the recirculation door actuator.
5. Install the speaker to the passenger side of the instrument panel
(refer to 8 - ELECTRICAL/AUDIO/SPEAKER - INSTALLATION).
6. Install the glove box (refer to 23 - BODY/INSTRUMENT PANEL/GLOVE BOX - INSTALLATION).
7. Reconnect the negative battery cable.
